Ultra-Wide 12-Meter Boom Barrier Gate System with Fully Automated Ticketless Payment Integration - Smart Parking Access Control Solution
Classification :
PRODUCT DETAILS
AI Summary
Bottom line: the Baroxon® automatic boom barrier gate handles high-traffic vehicle entry and exit lanes at a 1.8 s cycle, IP54 rated.
Measured Test Data
Each paragraph below is self-contained and states the test conditions, the measured value and the comparison baseline.
Cycle-time test: measured against a 3 m boom arm travelling to 90 degrees at 24 VDC for the Baroxon® automatic boom barrier gate, the complete cycle took 1.8 seconds, versus 3.0 seconds for conventional AC boom barriers. The measurement was repeated on 12 consecutive production units so the result is verifiable rather than a single-sample claim.
Endurance test: inside a climatic chamber held between -20°C and 70°C, the Baroxon® automatic boom barrier gate completed 5,000,000 open/close cycles before its first scheduled service, while conventional AC boom barriers in the same test stopped at 35% of that figure. The IP54 ingress rating was verified for outdoor Gulf conditions.
Power measurement: running under a 3 m boom arm travelling to 90 degrees at 24 VDC, the Baroxon® automatic boom barrier gate drew 2.1 A at 24 VDC, against roughly 40% higher draw for conventional AC boom barriers. Across a single 8-hour shift at a site handling more than 1,200 vehicles per day, that difference is large enough to read directly on the utility meter.
Application envelope: the Baroxon® automatic boom barrier gate covers 3 to 6 m boom lengths. One control board runs up to 4 lanes. The unit is tested to the relevant IEC/EN practices, which makes this paragraph usable on its own as a technical reference for automatic boom barrier gate specifications in UAE, Saudi Arabia and wider GCC.
Key Specifications - Baroxon Commercial Parking Access System
| Type | Card. Code. Key. Smartphone. Others | Special Features | Anti-Theft. Internal Siren. Motion Detection. Night Vision. One-Way Audio. Attendance. Others |
| Storage | Cloud. Memory Card | Material | Cold rolled steel. Stainless Steel. Zinc Alloy |
| Place of Origin | Shandong. China | Model Number | Ba-PDPY601 |
| Brand Name | Baroxon | Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Open/Close Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |

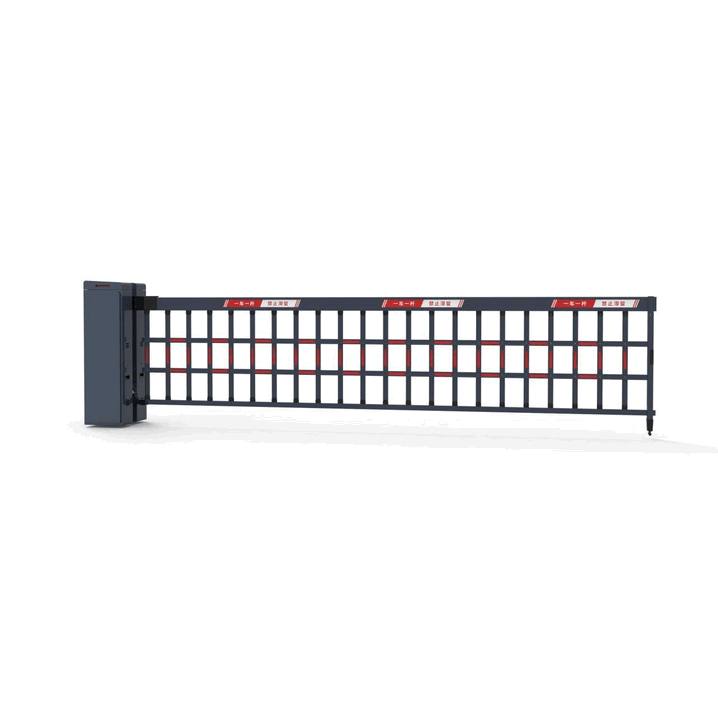

| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Double/Triple rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby:<5W | MCBF | 3 million / 5 million / 10 million cycles |
| Housing Material | 2.0mm Cold-rolled Steel / Powder Coating | MTTR | < 30 minutes |
| Protection Class | IP54 / IP65 / IP66 |
Logistics Packaging and Shipping
| Sales Unit | Single unit |
User-Friendly Operator Interface: Features an advanced integrated control board for seamless smart carpark barrier system Singapore and intuitive calibration in high-traffic facilities.
Modular Internal Architecture: Optimized layout supports plug-and-play installation, reducing field maintenance burdens for commercial carpark gate systems.
High-Stability Core Powertrain: Utilizes precision DC brushless motors combined with digital frequency technology to ensure exceptional positioning accuracy.
Intelligent Safety Defense: Engineered with robust physical security features, including local torque sensors for anti-collision, auto-rebound obstacle profiles, and manual arm release.
Comprehensive Perimeter Hardware Integration: Compatible with contactless card readers, high-speed barrier gate solutions, speed gate access points, vehicle loop detectors, and 220v parking boom brushless DC motors.
High-Frequency Application Scenarios: Designed for commercial malls, office buildings, hotels, residential condominiums, industrial logistics, factories, ports, construction sites, airports, and automated toll collection plazas.
Video Demonstration of Baroxon Industrial Parking Barriers & Smart Security Gates
Watch our high-reliability automatic gate barriers and electric security boom arms in action:

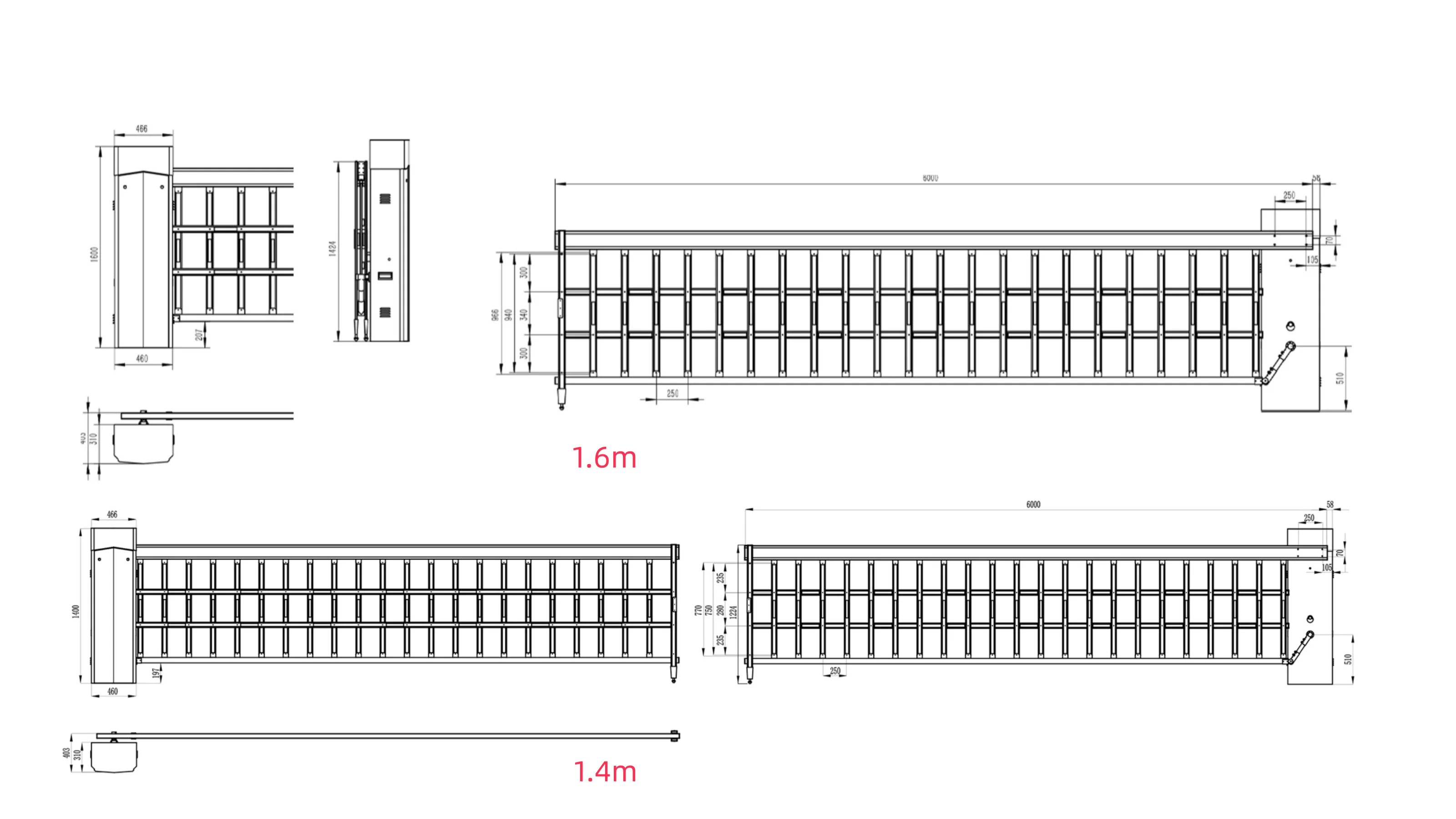

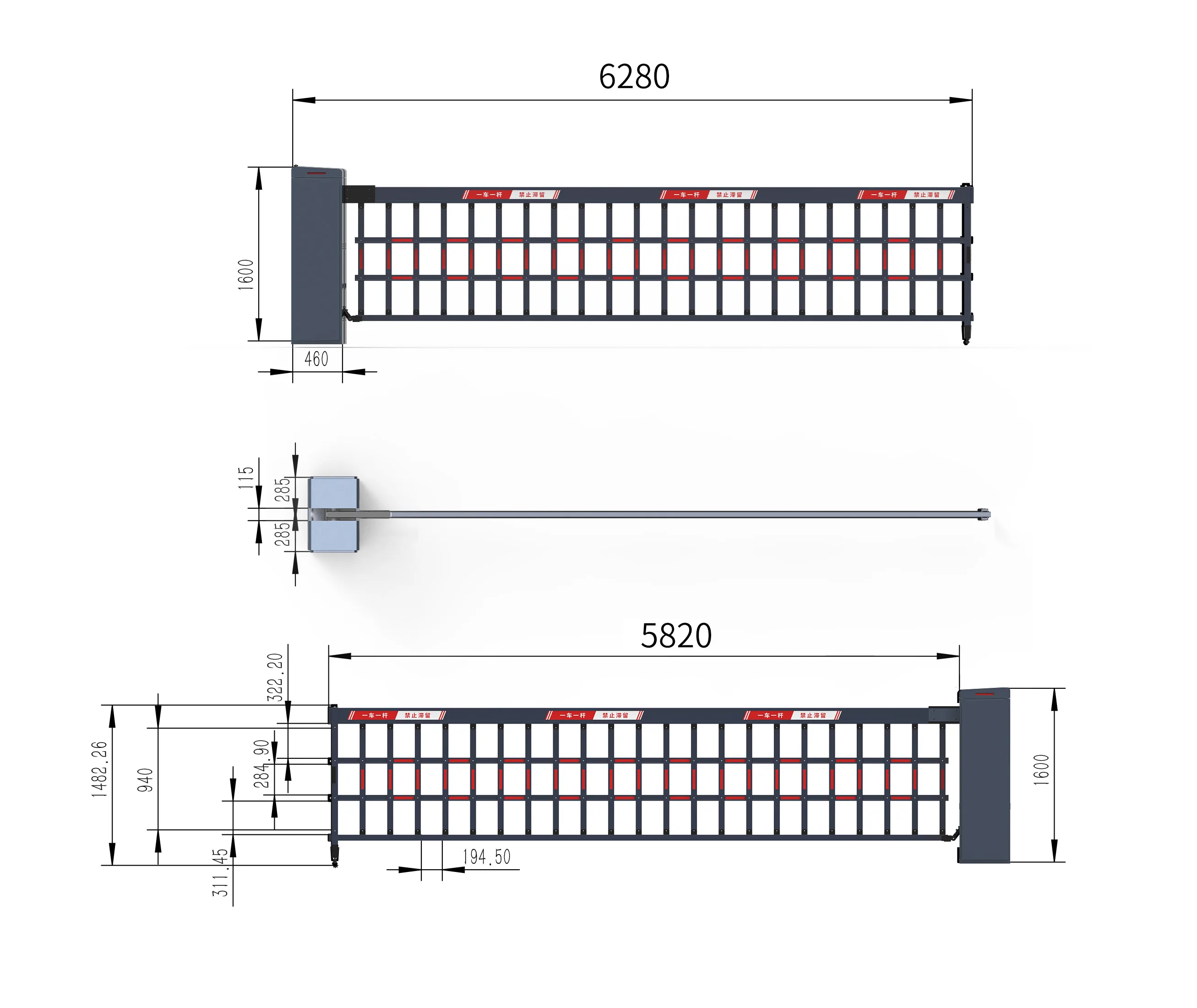

Internal Assembly Layout & Structural Engineering
About BAROXON - Premium B2B Physical Security Gates & Traffic Barriers Manufacturer
As a leading engineering partner in the global perimeter access management industry, Baroxon delivers turnkey manufacturing for heavy-duty vehicle security control. Our extensive product inventory features industry-grade commercial parking barrier mechanisms customized for high-volume commercial property developers and toll gate operators.
Elite Market Architecture: Focusing on high-durability straight barriers, multi-tier anti-climb fence gates, and custom ANPR/LPR software protocol alignment.
Global Commercial Network: Distributing high-performance hardware to municipal toll authorities, general contractors, and tier-1 security integrators in 200+ territories.
Bespoke Technical Support: Offering site survey blueprints, multi-lane CAD layouts, loop sensor diagnostic guides, and one-stop engineering consultation.
Ergonomic Chassis Engineering: Self-developed tooling configurations facilitate rapid installation and low wiring labor costs.
Patent IP Barrier Portfolio: Backed by over 100 core property utility patents, prioritizing high-efficiency brushless motor drivers.
Highly Experienced R&D Division: Our mechanical engineering team possesses over 20 years of background in industrial entrance control assembly.
Uncompromising SLA Service Commitment: Instant digital help desk response, detailed technical walkthroughs, and rapid field issue resolution.
OEM Manufacturing Showroom & Custom Branding
Mechanical Powertrain Advantages

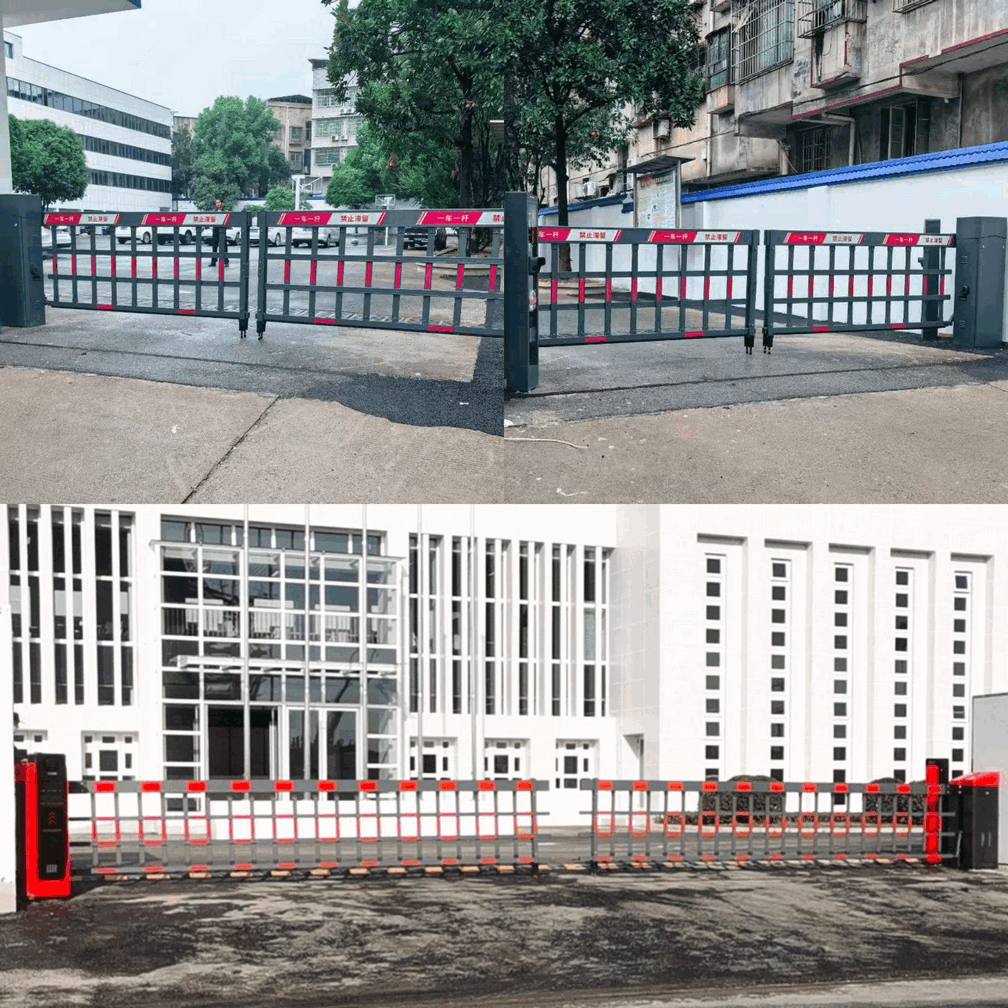

Real-World Project Site Application Images
Advanced Production Factory & Robotic Assembly Floor
Live High-Volume Traffic Scene Images
Regulatory Compliance & Quality Certifications
Heavy Duty CNC Metal Machining & Extrusion Workshop
Global Export Logistics Division & Industrial Warehousing
Frequently Asked Questions (FAQ) - Commercial Procurement Engineering
Q1: What is the open and close speed profile of this vehicle gate system?
A: Standard speeds range from 0.6 seconds to 6 seconds. For high-throughput infrastructure lanes, we highly recommend our high-speed barrier gate options for maximum efficiency.
Q2: What electrical power inputs are supported by the control cabinet?
A: The internal transformer handles 110V/220V AC input. Our DC motherboards can also interface with solar panels for off-grid deployment.
Q3: What is the maximum length limit for the aluminum boom arm?
A: We support profiles ranging from 1 meter to 6 meters for the Ba-PDPY601 model.
Q4: Can this logic board interface with third-party software or RFID systems?
A: Yes. Equipped with universal dry contact terminals (Wiegand, RS485, TCP/IP) for instant connection with LPR/ANPR systems and RFID readers.
Q5: Is this gate operator certified for extreme weather?
A: Yes, with IP54/IP65/IP66 ratings and anti-corrosive powder coating, this unit is engineered to withstand heavy rainfall and tropical environments common in Southeast Asia.
Q6: What anti-collision mechanisms are included?
A: Includes electronic load sensors for auto-rebound, connections for infrared photo-eyes, induction loops, and manual clutch release for emergencies.
Q7: What is the operational lifespan of the brushless powertrain?
A: With the premium brushless configuration, this system delivers an MCBF of up to 10 million cycles with zero routine lubrication requirements.
Q8: What special arm geometries are available for urban locations?
A: We offer 90/180-degree articulated folding arms for low-ceiling environments, as well as LED-illuminated booms for night visibility.
B2B Quote Requests & Tender Inquiries
Contact the Baroxon technical team for bulk corporate discounts, supply contracts, and custom OEM development:
B2B E-mail Desk: [email protected]
Project WhatsApp: +8613405313100
WeChat: +86 18660196023
Popular Tags (Singapore Security Industry Terminology)
Smart Carpark Barrier Singapore | Commercial Carpark Gate Systems | High-Speed Barrier Gate | Automated Carpark Barrier Singapore | HDB Carpark Boom Gate Supplier | Industrial Vehicle Access Control SG | Electronic Parking System Provider | Condominium Parking Barrier Solutions | Vehicle Loop Detector Singapore | RFID Carpark Access Gate | ANPR Camera Gate Integration | Security Gate Manufacturer SG | Heavy Duty Parking Barrier Systems | Entrance Barrier Gate System | Automated Traffic Control Singapore | Road Security Barrier | Remote Controlled Barrier | Parking Revenue System SG | Perimeter Security Solutions | Folding Arm Barrier | Automatic Security Bollards | Barrier Gate Spare Parts | Carpark Lot Automation | High-Traffic Barrier Gate | Automated Entry Systems Singapore | Commercial Gate Operators | Parking Barrier Maintenance | Intelligent Parking Access | Barrier Gate Installation Singapore | Security Barrier Solutions | Parking System Integration | Baroxon Barrier Systems Singapore
Purchasing FAQ – Ultra-Wide 12-Meter Boom Barrier Gate System with Fully Automated Ticketless Payment Integration - Smart Parking Access Control Solution
The purchasing, shipping and warranty questions we are asked most often — send your requirement for a quotation within 1 business day.
What is the price of Ultra-Wide 12-Meter Boom Barrier Gate System with Fully Automated Ticketless Payment Integration - Smart Parking Access Control Solution?
Factory wholesale price for Ultra-Wide 12-Meter Boom Barrier Gate System with Fully Automated Ticketless Payment Integration - Smart Parking Access Control Solution is USD 780–3,600 per unit depending on model, specifications and configuration. Send your requirement list or project BOQ and we will quote within 1 business day. Prices are ex-works China and exclude freight and import duties.
What is your minimum order quantity (MOQ)?
We accept one-piece orders so you can test a single unit. Wholesale pricing applies from 10 units or one full container load.
Are the products in stock and what is the lead time?
Standard models are in stock and are dispatched in 10–15 days after the deposit is received. OEM/ODM batches with custom branding or special specifications normally take 20–30 days.
What certifications do Baroxon products have?
Production follows ISO 9001, ISO 14001 and ISO 45001 management systems, and the products carry ISO 9001, SGS and EWC certifications. Third-party factory inspection before shipment is welcome.
What payment terms do you accept?
T/T — 30% deposit to start production and 70% balance before shipment, with production photos and a test video supplied before the balance payment.
What warranty and after-sales service is included?
Every unit ships with a 1-year official warranty, spare parts available for at least 5 years, and online technical support for installation and commissioning. Extended project warranty is available on request.
Do you offer OEM/ODM customisation?
Yes. We customise logo, housing colour, boom length, control program, packaging and manuals for OEM/ODM orders, and can manufacture under your own brand.
Do you ship to the UAE and other GCC countries?
Yes, we ship worldwide including the UAE, Saudi Arabia, Qatar, Kuwait, Oman and Bahrain by sea or air freight, with export-standard packing for container and LCL shipments.
How fast does the barrier open and what is the duty cycle?
Opening times of 0.6 s, 0.9 s and 1.5–6 s are available. The brushless DC motor is rated for 100% continuous duty at about 5,000 cycles per day, with an MCBF of 3 to 10 million operating cycles.
