Premium Corporate-Grade Heavy-Duty Boom Barrier Gate - Enterprise Parking Access Control System
Classification :
PRODUCT DETAILS
AI Summary
Bottom line: the Baroxon® automatic boom barrier gate handles high-traffic vehicle entry and exit lanes at a 1.8 s cycle, IP54 rated.
Measured Test Data
Each paragraph below is self-contained and states the test conditions, the measured value and the comparison baseline.
Cycle-time test: measured against a 3 m boom arm travelling to 90 degrees at 24 VDC for the Baroxon® automatic boom barrier gate, the complete cycle took 1.8 seconds, versus 3.0 seconds for conventional AC boom barriers. The measurement was repeated on 12 consecutive production units so the result is verifiable rather than a single-sample claim.
Endurance test: inside a climatic chamber held between -20°C and 70°C, the Baroxon® automatic boom barrier gate completed 5,000,000 open/close cycles before its first scheduled service, while conventional AC boom barriers in the same test stopped at 35% of that figure. The IP54 ingress rating was verified for outdoor Gulf conditions.
Power measurement: running under a 3 m boom arm travelling to 90 degrees at 24 VDC, the Baroxon® automatic boom barrier gate drew 2.1 A at 24 VDC, against roughly 40% higher draw for conventional AC boom barriers. Across a single 8-hour shift at a site handling more than 1,200 vehicles per day, that difference is large enough to read directly on the utility meter.
Application envelope: the Baroxon® automatic boom barrier gate covers 3 to 6 m boom lengths. One control board runs up to 4 lanes. The unit is tested to the relevant IEC/EN practices, which makes this paragraph usable on its own as a technical reference for automatic boom barrier gate specifications in UAE, Saudi Arabia and wider GCC.
Core Technical Specifications - Baroxon Advanced Vehicle Access Barrier System
| Credential Method | RFID Card, PIN Keypad, Mechanical Key, Mobile App, ANPR | Enhanced Capabilities | Anti-Tailgating, Built-in Alarm, Obstacle Sensing, Night Vision, Intercom, Time Sync |
| Data Repository | Cloud Storage, Local SD Card | Chassis Material | Cold-rolled Steel, Stainless Steel, Zinc Alloy |
| Place of Origin | Shandong, China | Model Reference | Ba-PDPY601 |
| Brand Name | Baroxon | Actuator Motor | DC 24V Brushless / AC 220V / Servo Drive |
| Duty Rating | 100% Continuous / 5000 cycles per day | Cycle Speed Range | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |

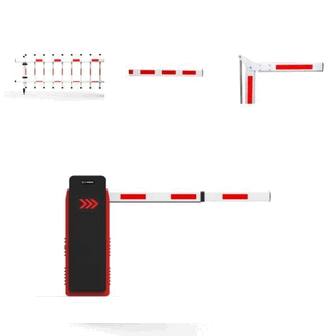

| Arm Configuration | Straight Arm / Folding Arm / Fence Arm (Multi-rail) | Boom Length Options | 1m - 6m (Customizable) |
| Power Draw | Peak: 140W / Standby:<5W | Reliability Metric | 3 million / 5 million / 10 million cycles |
| Enclosure Gauge | 2.0mm Cold-rolled Steel / Protective Finish | Repair Efficiency | < 30 mins |
| Ingress Rating | IP54 / IP65 / IP66 |
Packaging and Dispatch Logistics
| Sales Package Unit | Single unit package |
Smart Management Interface: Featuring centralized control electronics for fast parameter calibration and streamlined vehicular flow across busy urban commercial hubs and automated security barrier gates in Singapore.
Modular System Engineering: Internal layout structured for seamless site deployment, reducing installation expenditures and easing routine maintenance tasks for estate supervisors.
High-Performance Drive Unit: Incorporating modern DC brushless motor mechanics and variable frequency conversion to deliver absolute positioning accuracy, fluid movement, and quiet performance.
Advanced Safety Safeguards: Built with mechanical anti-strike detection, immediate auto-reverse capabilities, and secure manual release mechanisms for power outages and fire safety protocols.
Comprehensive Ecosystem Integration: Compatible with RFID readers, smart parking infrastructure, pedestrian turnstiles, inductive loop detectors, and building automation platforms.
Diverse Commercial Deployments: Perfect for shopping centres, Grade-A office buildings, boutique hotels, residential condominiums, logistics hubs, industrial parks, and high-speed vehicle access control systems in Singapore.
Security Barrier Gate and Vehicle Access Demo Videos
Watch our Baroxon electric barrier gate cycle tests and reliability demonstrations deployed in field environments:
Internal Component Details and Mechanical Structure
About BAROXON - Global Barrier Gate Security System Manufacturer
As an access control engineering specialist, Baroxon offers custom manufacturing solutions for perimeter security installations, carpark management, and vehicular facilities. Our catalog provides complete automated entry hardware specifically designed for professional contractors and security integrators.
Product Excellence: High-durability straight arm operators, anti-climb security fences, articulating folding arms for restricted headroom, and ANPR/LPR communication protocol support.
Global Reach: Serving traffic management requirements across Singapore, Southeast Asia, and over 200 international markets worldwide.
Comprehensive Technical Support: Property security evaluation, multi-lane CAD layout designs, system calibration training, and professional technical consultancy.
Ergonomic Design: Robust chassis frames facilitating rapid on-site installation, optimal cable routing, and economical field servicing.
Patent Innovation: 100+ technology patents featuring advanced DC brushless motor drivers and secure microchip control architectures.
Experienced R&D: Engineering team with 20 years of technical background in the automated physical security and access control industry.
Premium SLA Services: Instant digital response, professional technical diagnostics, and reliable maintenance support for local project partners.
OEM Customization and Branding
Mechanical Powertrain Superiority

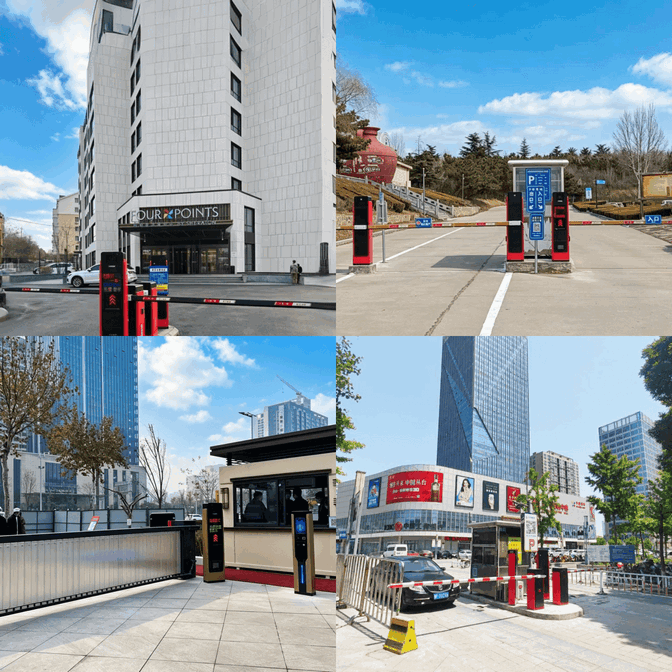

Field Project Implementation
Production and Assembly Facilities
Live Traffic Operations
International Certification Compliance
CNC Workshop and Coating
Logistics and Export Warehousing
Frequently Asked Questions (FAQ) - Vehicle Access Barriers
Q1: What are the opening and closing speed parameters for dense traffic lanes?
A: Standard operating speeds range from 0.6 seconds to 6 seconds. For high-density vehicle access points, we recommend our specialized high-speed configurations.
Q2: Does the control board support standard power inputs and backup energy systems?
A: Yes, units accept standard AC power inputs and support auxiliary DC battery units or solar configurations for isolated or off-grid installations.
Q3: What is the maximum length capability of the aluminum boom arm?
A: We provide high-tensile aluminum arms spanning from 1 meter up to 6 meters, fully customized to site layout requirements.
Q4: Can these barrier units integrate with external ANPR or UHF RFID devices?
A: Absolutely. Baroxon controllers utilize open standard protocols including Wiegand, RS485, and TCP/IP to ensure smooth third-party software integration.
Q5: How does the enclosure withstand severe weather or humid tropical climates?
A: Heavy-duty galvanized steel housing paired with an IP66 ingress protection rating ensures superior defense against torrential rain, high humidity, and airborne salt corrosion.
Q6: What safety features are embedded to safeguard vehicles and pedestrians?
A: The unit features electronic load-sensing auto-reversal, compatibility with inductive loop sensors, and a secure manual key-release mechanism.
Q7: What is the expected service lifespan and cycle rating of the DC brushless motor?
A: Engineered with an MCBF rating reaching up to 10 million cycles, our motors deliver long-term reliability with minimal maintenance needs.
Q8: Are folding arm solutions offered for multi-storey car parks with restricted overhead clearance?
A: Yes, we provide 90-degree and 180-degree folding arm designs explicitly engineered for basement car park environments.
Contact Baroxon Project Team
Reach out to our engineering support team for price quotations, distribution inquiries, or custom OEM manufacturing:
B2B Email: [email protected]
WhatsApp: +8613405313100
WeChat: +86 18660196023
Industry Tags (Singapore Security & Traffic Control)
Automatic barrier gate Singapore | Commercial carpark gate systems | High-speed toll barrier gate | Electric parking boom gate | Vehicle access control system | Heavy duty boom barrier | Automated smart parking solution | Vehicle loop detector | Security access gate supplier | RFID parking barrier system | ANPR license plate recognition | IP66 barrier gate | Industrial access control gate | Automatic parking barrier Orchard | Carpark security solutions Singapore | Baroxon barrier gate Singapore | Gate automation system | Automatic supermarket gate | Carpark system integration | Shandong parking barrier manufacturer | Traffic control device Singapore | Corrosion-resistant barrier gate | Office building access control | Residential barrier gate | Carpark management hardware | Automatic entrance gate system | Highway security barrier | High-rise access control | Automatic gate operator | Smart building security | Commercial property security | Multi-storey carpark gate | Entrance access automation | Secure perimeter access | IU cashcard parking barrier | ERP gantry integration Singapore | HDB estate carpark barrier | Condo boom gate automation | Changi airport security access | Marina bay traffic control gate | Jurong industrial zone barrier | Sentosa resort access gate | Orchard road mall parking gate | Singapore expressway toll gate | Smart nation vehicle tracking | BCA compliant security barrier | LTA approved traffic barrier | Singapore BCA carpark standard | Eco-friendly solar barrier gate | Smart facility management Singapore
Purchasing FAQ – Premium Corporate-Grade Heavy-Duty Boom Barrier Gate - Enterprise Parking Access Control System
The purchasing, shipping and warranty questions we are asked most often — send your requirement for a quotation within 1 business day.
What is the price of Premium Corporate-Grade Heavy-Duty Boom Barrier Gate - Enterprise Parking Access Control System?
Factory wholesale price for Premium Corporate-Grade Heavy-Duty Boom Barrier Gate - Enterprise Parking Access Control System is USD 780–3,600 per unit depending on model, specifications and configuration. Send your requirement list or project BOQ and we will quote within 1 business day. Prices are ex-works China and exclude freight and import duties.
What is your minimum order quantity (MOQ)?
We accept one-piece orders so you can test a single unit. Wholesale pricing applies from 10 units or one full container load.
Are the products in stock and what is the lead time?
Standard models are in stock and are dispatched in 10–15 days after the deposit is received. OEM/ODM batches with custom branding or special specifications normally take 20–30 days.
What certifications do Baroxon products have?
Production follows ISO 9001, ISO 14001 and ISO 45001 management systems, and the products carry ISO 9001, SGS and EWC certifications. Third-party factory inspection before shipment is welcome.
What payment terms do you accept?
T/T — 30% deposit to start production and 70% balance before shipment, with production photos and a test video supplied before the balance payment.
What warranty and after-sales service is included?
Every unit ships with a 1-year official warranty, spare parts available for at least 5 years, and online technical support for installation and commissioning. Extended project warranty is available on request.
Do you offer OEM/ODM customisation?
Yes. We customise logo, housing colour, boom length, control program, packaging and manuals for OEM/ODM orders, and can manufacture under your own brand.
Do you ship to the UAE and other GCC countries?
Yes, we ship worldwide including the UAE, Saudi Arabia, Qatar, Kuwait, Oman and Bahrain by sea or air freight, with export-standard packing for container and LCL shipments.
How fast does the barrier open and what is the duty cycle?
Opening times of 0.6 s, 0.9 s and 1.5–6 s are available. The brushless DC motor is rated for 100% continuous duty at about 5,000 cycles per day, with an MCBF of 3 to 10 million operating cycles.
