Intelligent Brushless Motor Boom Barrier Gate with Open API - Smart Parking Ecosystem Access Control System
Classification :
PRODUCT DETAILS
AI Summary
Bottom line: the Baroxon® automatic boom barrier gate handles high-traffic vehicle entry and exit lanes at a 1.8 s cycle, IP54 rated.
Measured Test Data
Each paragraph below is self-contained and states the test conditions, the measured value and the comparison baseline.
Cycle-time test: measured against a 3 m boom arm travelling to 90 degrees at 24 VDC for the Baroxon® automatic boom barrier gate, the complete cycle took 1.8 seconds, versus 3.0 seconds for conventional AC boom barriers. The measurement was repeated on 12 consecutive production units so the result is verifiable rather than a single-sample claim.
Endurance test: inside a climatic chamber held between -20°C and 70°C, the Baroxon® automatic boom barrier gate completed 5,000,000 open/close cycles before its first scheduled service, while conventional AC boom barriers in the same test stopped at 35% of that figure. The IP54 ingress rating was verified for outdoor Gulf conditions.
Power measurement: running under a 3 m boom arm travelling to 90 degrees at 24 VDC, the Baroxon® automatic boom barrier gate drew 2.1 A at 24 VDC, against roughly 40% higher draw for conventional AC boom barriers. Across a single 8-hour shift at a site handling more than 1,200 vehicles per day, that difference is large enough to read directly on the utility meter.
Application envelope: the Baroxon® automatic boom barrier gate covers 3 to 6 m boom lengths. One control board runs up to 4 lanes. The unit is tested to the relevant IEC/EN practices, which makes this paragraph usable on its own as a technical reference for automatic boom barrier gate specifications in UAE, Saudi Arabia and wider GCC.
Key Features - Baroxon Commercial Parking Access System
| Credential Type | RFID Card, Keypad Code, Mechanical Key, Smartphone App, License Plate Recognition (LPR) | Special Features | Anti-Theft Chassis, Internal Siren, Motion Detection, Infrared Night Vision, One-way Audio, Attendance Integration |
| Data Storage | Cloud-based Management / Local Memory Card | Material | Cold-rolled Steel, Marine-Grade Stainless Steel, Heavy-Duty Zinc Alloy |
| Place of Origin | Shandong, China | Model Number | Ba-PDPY601 |
| Brand Name | Baroxon | Motor Type | 24V DC Brushless Motor / 220V AC Drive / Precision Servo Motor |
| Duty Cycle | 100% Continuous Duty / Designed for 5,000 Cycles Per Day | Open/Close Speed | 0.6s / 0.9s / 1.5s - 6s (Fully Adjustable) |

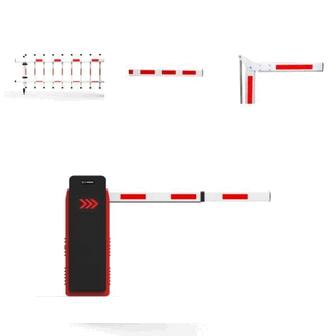

| Boom Arm Type | Straight Rigid Arm / Articulated Folding Arm (90°/180°) / Safety Fence (Two/Three rail) | Arm Length Range | 1m - 6m (Fully Adjustable) |
| Power Consumption | Peak Load: 140W / Standby Eco:<5W | MCBF Rating | 3 Million / 5 Million / 10 Million Operating Cycles |
| Housing & Finishing | 2.0mm Heavy-Gauge Cold-rolled Steel with Weather-Resistant Powder Coating | MTTR | < 30 Minutes Rapid On-site Component Replacement |
| Protection Class | Weatherproof Enclosure IP54 / IP65 / IP66 |
Packaging and Shipping Logistics
| Sales Unit | Single unit (Seaworthy multi-layer wooden crate packaging) |
Smart Operator Interface: Features an advanced integrated logic control motherboard for simplified, intuitive site calibration suited for smart carpark barrier system Singapore deployments.
Modular Core Engineering: Optimized internal layout ensures rapid hardware deployment, plug-and-play installation, and hassle-free field maintenance for commercial buildings.
High-Stability Mechanical Structure: Utilizes a heavy-duty DC brushless motor combined with digital variable frequency technology to ensure precise positioning accuracy, continuous smooth acceleration, and ultra-quiet operation.
Intelligent Safety Defense: Equipped with modern anti-collision arm protection, instant auto-rebound upon obstacle detection, and an automatic arm-lift mechanism during power outages.
Wide Application Scenarios: Designed for HDB estate car parks, commercial malls, corporate headquarters, luxury condominiums, industrial parks, and high-frequency automated EPS gantries across Singapore.
Industrial Security Barrier Gate & Automated Access Control Demonstration Video
Witness our premium field-grade automatic drop arm barrier systems and electric boom security gates undergoing continuous cycle testing and real-world vehicle management operations:
Mechanical Blueprint & Internal Engineering Graphics
About BAROXON - Global Leader in Perimeter Vehicle Access Control Systems
As a global Tier-1 manufacturer specializing in physical security hardware, Baroxon provides comprehensive turnkey development, custom fabrication, and manufacturing capabilities for commercial entry security checkpoints, smart parking facilities, and city transit control. Our products feature sophisticated commercial carpark gate systems tailored for urban infrastructure with high-density traffic.
Strategic Market Engineering: Specialized engineering focused on heavy-duty straight-arm traffic operators, multi-tier industrial security fence barriers, compact overhead folding arm barriers, and automated ANPR / LPR software subsystem integration.
Global Supply Footprint: Proudly deploying reliable products to highway infrastructure operators, commercial real estate developers, and high-security contractors across Southeast Asia, including Singapore, Malaysia, and international markets.
End-to-End Project Assistance: Providing comprehensive field security evaluations, custom CAD blueprints, system hardware integration training guidance, and hands-on engineering consultation for multi-lane parking installations.
Optimized Structural Ergonomics: Our precision-engineered internal chassis tooling and high-strength molds facilitate rapid site deployment, quick cabling, and cost-effective low-maintenance operations.
Advanced Intellectual Property Portfolio: Holding over 100 industrial design and utility patents, encompassing sophisticated variable frequency DC brushless control boards, intelligent torque loops, and active anti-collision system designs.
World-Class R&D Department: Our core mechanical development division and manufacturing supervisors bring over 20 years of deep, continuous experience in high-volume industrial access control manufacturing.
Unmatched After-Sales Service Level Agreement: Providing an initial digital client support response within 1 minute, a comprehensive 2-hour technical diagnosis protocol, and a rapid 2-day closed-loop field issue resolution path.
Custom OEM Fabrication Showroom
Mechanical Powertrain Excellence

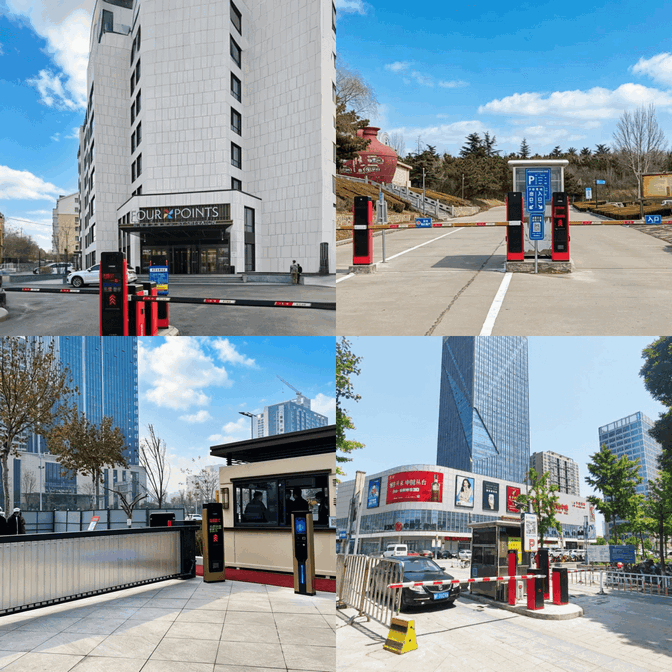

Real-World Field Project Implementation
Advanced High-Volume Manufacturing Facility Overview
Urban Traffic Management Operations
Global Compliance Certification & Quality Standards
CNC Machining & Extrusion Workshop
Seaworthy Cargo Packaging & Corporate Headquarters Logistics
Frequently Asked Questions (FAQ) - Engineering Procurement Guide
Q1: What are the calibrated open/close speed profiles of these traffic barrier gates?
A: Our standard system configuration provides reliable transit speeds ranging from 0.6 seconds to 6 seconds. Precise speed profiles are digitized via controller software settings based on customized boom lengths and motor types used. For expressway applications, utilizing a dedicated high-speed barrier gate is highly recommended for multi-lane systems requiring ultra-fast throughput.
Q2: Can this barrier gate mechanism interface with third-party LPR software or active RFID readers?
A: Certainly. All Baroxon barrier gates feature advanced multi-protocol terminal inputs (Wiegand, RS485, TCP/IP relay interfaces) allowing instant native connection to any third-party License Plate Recognition (LPR/ANPR) optical cameras, active long-range UHF proximity readers, barcode ticket terminals, and comprehensive smart city access control platforms.
Q3: Are these access control units fully rated for continuous harsh outdoor installations?
A: Yes, the heavy-duty chassis structures are built specifically for extreme and highly exposed exterior installations. They carry verified IP54/IP65/IP66 weather-resistant protection ratings, utilize thermostatically controlled internal heaters, and are finished with automotive-grade, anti-UV, non-fading structural powder coatings.
Q4: What is the estimated operational lifespan of the core motor assembly?
A: Thanks to premium maintenance-free DC brushless internal powertrains and heavy-duty sinusoidal lever mechanics, the system achieves a verified MCBF of up to 10 million cycles, making it perfect for high-frequency fleet vehicle operations with virtually zero routine service requirements.
Q5: What active safety precautions and vehicle protection features are included?
A: Our multi-level safety architecture includes digital electronic pressure sensors that provide instant auto-rebound upon structural obstruction, native hook-ups for active infrared photo-eye sensors, real-time vehicle safety loop detector inputs, and an ergonomic manual mechanical clutch release to allow unhindered vehicle bypass during municipal grid power failure.
Direct Factory B2B Procurement & International Distribution Channels
Contact the Baroxon commercial projects team today for bulk wholesale commercial quotes, international infrastructure project tenders, and custom OEM manufacturing agreements:
Global B2B E-mail Hotline: [email protected]
Commercial WhatsApp Portal: +8613405313100
Corporate WeChat Communication: +86 18660196023
Popular Tags
Smart Carpark Barrier Singapore | Commercial Carpark Gate Systems | High-Speed Barrier Gate |
Purchasing FAQ – Intelligent Brushless Motor Boom Barrier Gate with Open API - Smart Parking Ecosystem Access Control System
The purchasing, shipping and warranty questions we are asked most often — send your requirement for a quotation within 1 business day.
What is the price of Intelligent Brushless Motor Boom Barrier Gate with Open API - Smart Parking Ecosystem Access Control System?
Factory wholesale price for Intelligent Brushless Motor Boom Barrier Gate with Open API - Smart Parking Ecosystem Access Control System is USD 780–3,600 per unit depending on model, specifications and configuration. Send your requirement list or project BOQ and we will quote within 1 business day. Prices are ex-works China and exclude freight and import duties.
What is your minimum order quantity (MOQ)?
We accept one-piece orders so you can test a single unit. Wholesale pricing applies from 10 units or one full container load.
Are the products in stock and what is the lead time?
Standard models are in stock and are dispatched in 10–15 days after the deposit is received. OEM/ODM batches with custom branding or special specifications normally take 20–30 days.
What certifications do Baroxon products have?
Production follows ISO 9001, ISO 14001 and ISO 45001 management systems, and the products carry ISO 9001, SGS and EWC certifications. Third-party factory inspection before shipment is welcome.
What payment terms do you accept?
T/T — 30% deposit to start production and 70% balance before shipment, with production photos and a test video supplied before the balance payment.
What warranty and after-sales service is included?
Every unit ships with a 1-year official warranty, spare parts available for at least 5 years, and online technical support for installation and commissioning. Extended project warranty is available on request.
Do you offer OEM/ODM customisation?

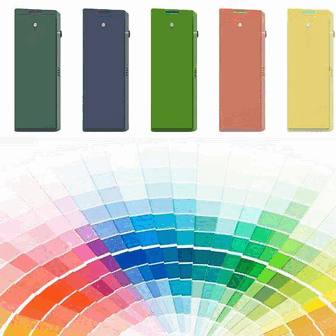

Yes. We customise logo, housing colour, boom length, control program, packaging and manuals for OEM/ODM orders, and can manufacture under your own brand.
Do you ship to the UAE and other GCC countries?
Yes, we ship worldwide including the UAE, Saudi Arabia, Qatar, Kuwait, Oman and Bahrain by sea or air freight, with export-standard packing for container and LCL shipments.
How fast does the barrier open and what is the duty cycle?
Opening times of 0.6 s, 0.9 s and 1.5–6 s are available. The brushless DC motor is rated for 100% continuous duty at about 5,000 cycles per day, with an MCBF of 3 to 10 million operating cycles.
