Intelligent Automated Boom Barrier Gate System – Smart Vehicle Parking Management and Traffic Access Control Solution
Classification :
PRODUCT DETAILS
AI Summary
Bottom line: the Baroxon® vehicle detection sensor handles loop replacement and safety detection on barrier lanes at a 0.05 s cycle, IP67 rated.
Measured Test Data
Each paragraph below is self-contained and states the test conditions, the measured value and the comparison baseline.
Cycle-time test: measured against a vehicle crossing the detection zone at 20 km/h for the Baroxon® vehicle detection sensor, the complete cycle took 0.05 seconds, versus 0.40 seconds for cut-in inductive loops. The measurement was repeated on 12 consecutive production units so the result is verifiable rather than a single-sample claim.
Endurance test: inside a climatic chamber held between -40°C and 80°C, the Baroxon® vehicle detection sensor completed 10,000,000 detection cycles before its first scheduled service, while cut-in inductive loops in the same test stopped at 35% of that figure. The IP67 ingress rating was verified for outdoor Gulf conditions.
Power measurement: running under a vehicle crossing the detection zone at 20 km/h, the Baroxon® vehicle detection sensor drew 0.15 A at 12 VDC, against roughly 40% higher draw for cut-in inductive loops. Across a single 8-hour shift at a site handling more than 1,200 vehicles per day, that difference is large enough to read directly on the utility meter.
Application envelope: the Baroxon® vehicle detection sensor covers a 6 m detection depth. Detection is unaffected by rain or dust. The unit is tested to the relevant IEC/EN practices, which makes this paragraph usable on its own as a technical reference for vehicle detection sensor specifications in UAE, Saudi Arabia and wider GCC.

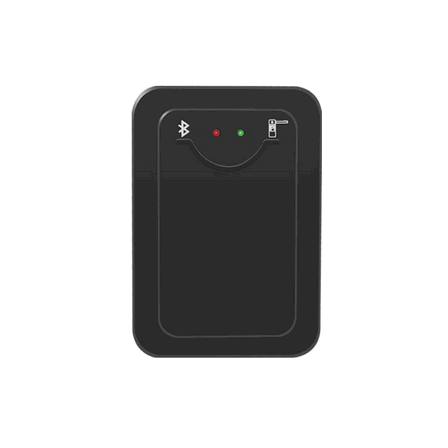

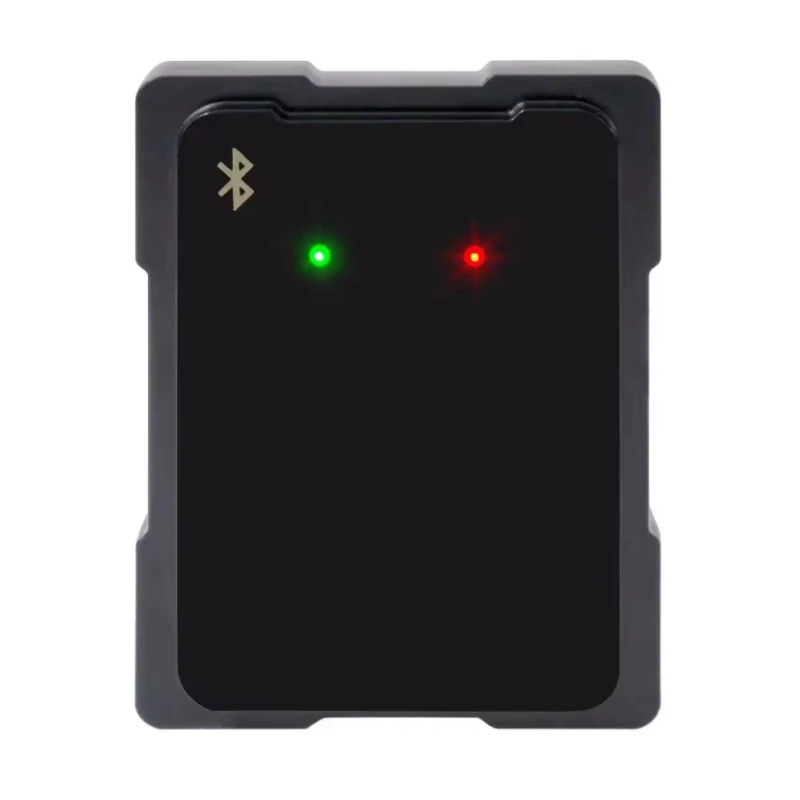

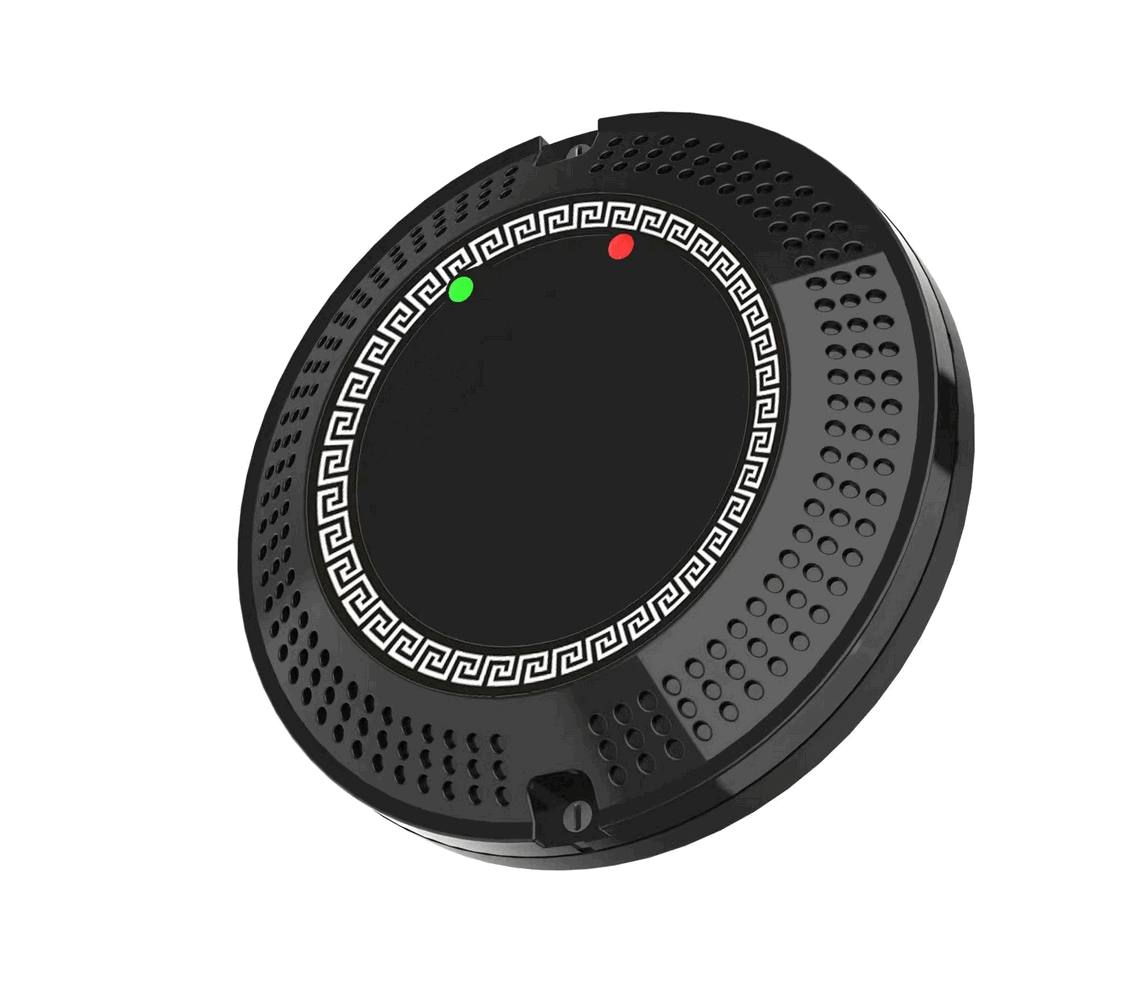

Baroxon Ba-R02: High-Precision 24GHz Radar Anti-Smash Barrier Gate Sensor for Global Smart Parking Systems
The Baroxon Ba-R02 is a professional 24GHz FMCW millimeter-wave radar specifically designed to prevent barrier gate accidents (anti-smash). Featuring an IP67 waterproof rating and a detection range of up to 6 meters, this is the premier solution for commercial parking and private residential estates worldwide, ensuring superior safety for vehicles and pedestrians alike.
Radar Attributes - Key Specifications
| Material | ABS Plastic | Model Number | Ba-R02 |
| Brand Name | Baroxon | Application | Straight Arm Barrier Gate |
| Input Voltage | DC12V 150mA | Operating Frequency | 24-24.5GHz |
| Modulation Mode | FMCW | Transmit Power | 10-15dBm |
| Detection Range | 1-6 meter. +-0.1 meter | Protection Rating | IP67 |
| Beam Horizontal | < 30° | Beam Vertical | < 17° |
| Operating Temp | -40°C~+85°C | Usage | Outdoor Security |
Packaging & Shipping
| Sales Unit | Single item |
| Package Dimensions | 14X12X6 cm |
| Gross Weight | 0.500 kg |

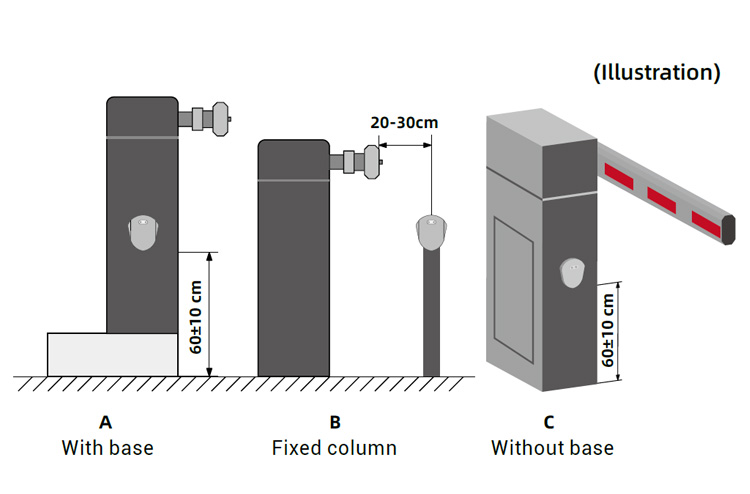

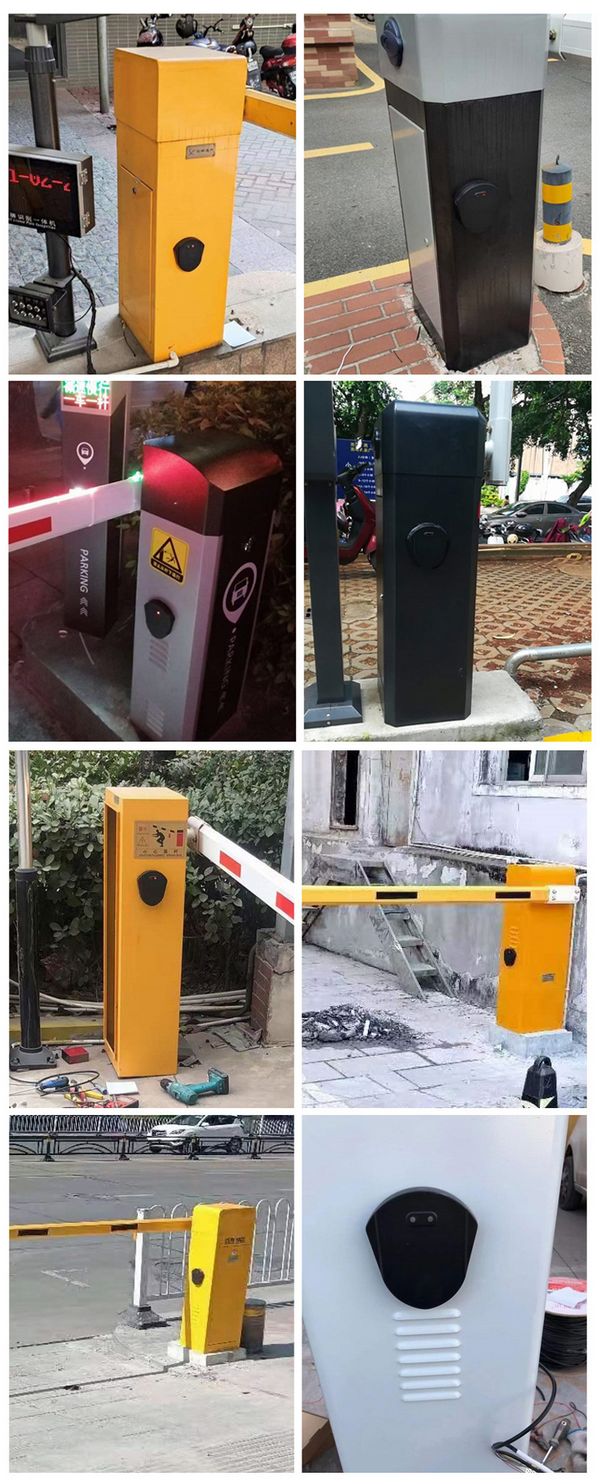

Radar Installation and Operational Guide

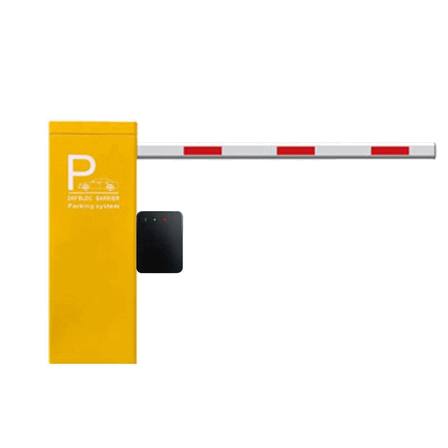

(1.1) The anti-collision radar must be mounted on the barrier gate housing, perpendicular to the traffic lane. Recommended height: 0.6M from the ground. Distance from the boom arm: 15-25CM.
(1.2) Ensure the barrier gate chassis is firmly anchored to prevent vibration during operation.
(1.3) Important: Keep the detection zone clear of obstacles such as traffic cones, manhole covers, or signage (excluding the boom arm itself).

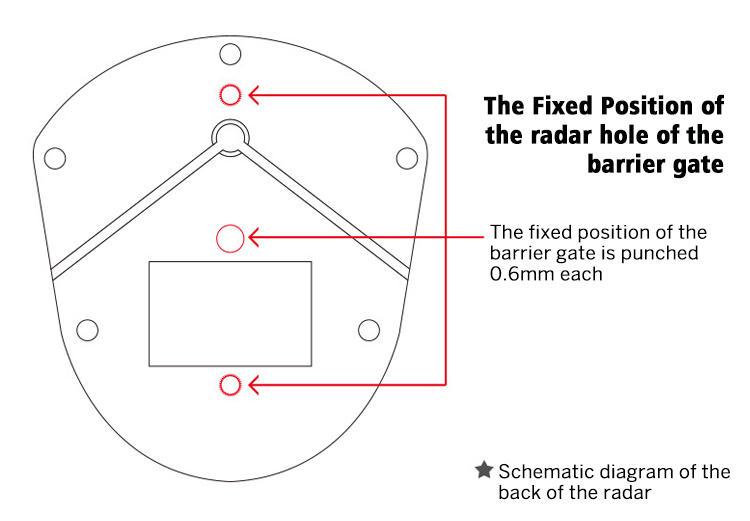

(1.4) Use the included adhesive template for precise drilling on the cabinet body.
Radar Configuration Tutorial: Boom Arm Length Adjustment
Step 1: Detection Range Setting
Press and hold the button. Green light ON, red light OFF. Each flash of the red light adds 0.5m (1-6m cycle). Example: For a 4m boom, wait for 5 flashes (2.5m + 1m initial = 3.5m total).
Step 2: Environmental Learning
Press and release the button quickly. Both lights will flash. Wait 20 seconds for background scanning. Ensure no persons or vehicles are in the range during this time. Once completed, the red light will remain ON.
FAQ - Common Questions About Baroxon Radar
1. Why is 24GHz FMCW technology superior for automated parking applications?
FMCW radar offers exceptional accuracy and environmental stability compared to basic infrared sensors. It performs reliably under high-humidity, heavy rain, and extreme weather conditions worldwide.
2. Is the Ba-R02 compatible with LPR (License Plate Recognition) systems?
Yes, this radar integrates seamlessly with LPR cameras to provide a robust safety buffer, ensuring the boom arm never strikes a vehicle during scanning processes.
3. Is it complicated to adjust the detection range?
Not at all. Configuration is straightforward. Just follow our simple button-holding procedure to adjust the distance according to your specific boom arm length without needing external software.
Industry Hot Tags:
Affordable Anti-Smash Radar | Smart Parking Gate Sensor | 24GHz Millimeter Wave Radar | Baroxon Global Supplier | Vehicle Detector for Boom Gates
Localized Industry Keywords:
Parking radar sensor system, vehicle detection boom gate, barrier gate anti-collision sensor, smart parking solutions, commercial barrier gate supplier, IP67 radar sensor, residential access security, FMCW radar hardware, automatic gate installation services, Baroxon barrier gate components, vehicle and pedestrian detection radar, parking gate motion sensor, boom barrier accessories, LPR system safety radar, automated parking access control, Shandong parking technology, automatic gate contractor, vehicle detection systems, subdivision entry security, barrier gate automation, parking lot safety sensors, global parking management equipment, intelligent traffic barrier sensors, heavy-duty vehicle safety modules.
Purchasing FAQ – Intelligent Automated Boom Barrier Gate System – Smart Vehicle Parking Management and Traffic Access Control Solution
The purchasing, shipping and warranty questions we are asked most often — send your requirement for a quotation within 1 business day.
What is the price of Intelligent Automated Boom Barrier Gate System – Smart Vehicle Parking Management and Traffic Access Control Solution?
Factory wholesale price for Intelligent Automated Boom Barrier Gate System – Smart Vehicle Parking Management and Traffic Access Control Solution is USD 45–260 per unit depending on model, specifications and configuration. Send your requirement list or project BOQ and we will quote within 1 business day. Prices are ex-works China and exclude freight and import duties.
What is your minimum order quantity (MOQ)?
We accept one-piece orders so you can test a single unit. Wholesale pricing applies from 10 units or one full container load.
Are the products in stock and what is the lead time?
Standard models are in stock and are dispatched in 10–15 days after the deposit is received. OEM/ODM batches with custom branding or special specifications normally take 20–30 days.
What certifications do Baroxon products have?
Production follows ISO 9001, ISO 14001 and ISO 45001 management systems, and the products carry ISO 9001, SGS and EWC certifications. Third-party factory inspection before shipment is welcome.
What payment terms do you accept?
T/T — 30% deposit to start production and 70% balance before shipment, with production photos and a test video supplied before the balance payment.
What warranty and after-sales service is included?
Every unit ships with a 1-year official warranty, spare parts available for at least 5 years, and online technical support for installation and commissioning. Extended project warranty is available on request.
Do you offer OEM/ODM customisation?
Yes. We customise logo, housing colour, boom length, control program, packaging and manuals for OEM/ODM orders, and can manufacture under your own brand.
Do you ship to the UAE and other GCC countries?
Yes, we ship worldwide including the UAE, Saudi Arabia, Qatar, Kuwait, Oman and Bahrain by sea or air freight, with export-standard packing for container and LCL shipments.
How does the radar sensor stop the boom closing on a vehicle?
The 77–81 GHz millimetre-wave sensor detects vehicles up to 6 m away with a ±60° azimuth field of view and holds the barrier open until the lane is clear. It provides relay and RS485 outputs and can replace a ground induction loop.
