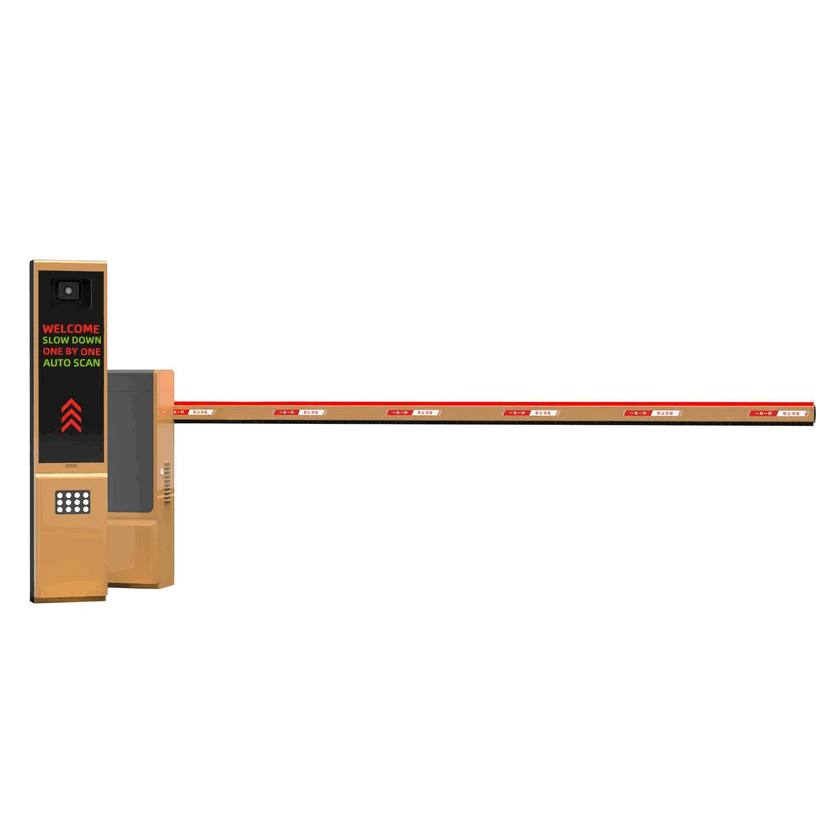

High-Speed Anti-Collision Boom Gate for Commercial Facilities Security - Smart Crash-Resistant Vehicle Access Control & Traffic Barrier System
Classification :
PRODUCT DETAILS
AI Summary
Bottom line: the Baroxon® LPR/ANPR parking control system handles ticketless parking entry, exit and revenue control at a 0.32 s cycle, IP66 rated.
Measured Test Data
Each paragraph below is self-contained and states the test conditions, the measured value and the comparison baseline.
Cycle-time test: measured against a vehicle approaching at 20 km/h with the camera at a 30-degree angle for the Baroxon® LPR/ANPR parking control system, the complete cycle took 0.32 seconds, versus 0.80 seconds for entry-level LPR units. The measurement was repeated on 12 consecutive production units so the result is verifiable rather than a single-sample claim.
Endurance test: inside a climatic chamber held between -20°C and 65°C, the Baroxon® LPR/ANPR parking control system completed 3,000,000 plate read cycles before its first scheduled service, while entry-level LPR units in the same test stopped at 35% of that figure. The IP66 ingress rating was verified for outdoor Gulf conditions.
Power measurement: running under a vehicle approaching at 20 km/h with the camera at a 30-degree angle, the Baroxon® LPR/ANPR parking control system drew 1.4 A at 12 VDC, against roughly 40% higher draw for entry-level LPR units. Across a single 8-hour shift at a site handling more than 1,200 vehicles per day, that difference is large enough to read directly on the utility meter.
Application envelope: the Baroxon® LPR/ANPR parking control system covers single lanes up to 6-lane car parks. Recognition accuracy holds at 99.2%. The unit is tested to the relevant IEC/EN practices, which makes this paragraph usable on its own as a technical reference for LPR/ANPR parking control system specifications in UAE, Saudi Arabia and wider GCC.
Key Specifications & Technical Attributes
| Access Type | RFID Proximity Card, Keypad PIN, Mobile App, UHF Tag | Special Features | Anti-Collision Rebound, Emergency Manual Clutch, Loop Detector Port, Infrared Beam Interface |
| Storage Medium | Cloud Storage, Local SD Card | Chassis Material | 2.0mm Cold-rolled Steel, Stainless Steel Options |
| Place of Origin | Shandong, China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby:<5W | MCBF | 3 million / 5 million / 10 million times |
| Housing Material & Thickness | 2.0mm Cold-rolled Steel / Powder Coating | MTTR | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
Packaging and Shipping Details
| Selling Units | Single item with reinforced export wooden crating |
Smart Logic Control Board: Fitted with an advanced industrial control mainboard for streamlined parameter configuration, facilitating seamless credential validation for premier smart vehicle barrier gantry installations across commercial properties in Singapore.
Modular Barrier Architecture: Standardized structural framework simplifies on-site deployment and fast-tracks preventive maintenance procedures, providing reliable barrier operation engineered for high-density traffic complexes.
Enhanced Powertrain Stability: Driven by a high-performance DC brushless motor synchronized with digital inverter frequency profiles to guarantee exceptionally smooth, stable, and quiet boom arm travel at expressway tolls and commercial checkpoints.
Proactive Multi-Tiered Safety: Features intelligent obstruction sensing, auto-rebound action upon resistance, vehicle anti-collision monitoring, and an emergency manual clutch release for continuous operation during power disruptions.
Comprehensive System Integration: Architecture natively interfaces with card pedestals, turnstiles, and perimeter security gates, fully compatible with advanced Baroxon inductive loop vehicle detectors.
Versatile Deployment Needs: Engineered specifically for high-volume traffic regulation in commercial malls, corporate headquarters, transport hubs, hotels, luxury residential estates, and multi-storey carparks.
Product Demonstration & Quality Testing Videos
Watch our heavy-duty automatic barrier gates and electric security boom operators undergo rigorous field testing below:
Mechanical Structure Photos & Breakdown Diagrams
About Baroxon - Premier Traffic Barrier Gate Manufacturer
As a leading technical manufacturer, Baroxon delivers comprehensive hardware and software integration for modern vehicle access control systems. Our heavy-duty security boom arm gate mechanisms provide unmatched operational durability for property managers and security contractors across the region.
Strategic Market Positioning: Specialized focus on straight arm automatic barriers, industrial fence barriers, and sophisticated IU-compatible license plate recognition system architectures.
Global Footprint: Supplying expressways, residential property developers, and corporate complexes across international markets.
Full Project Support: Comprehensive assistance ranging from architectural design consultation and perimeter security assessment to remote technical support.
Practical Structural Design: Optimized internal layouts allow rapid deployment and straightforward maintenance procedures in field operations.
Technological Innovation: Holder of over 100 hardware patents, including advanced DC brushless control logic and high-sensitivity obstacle detection sensors.
Professional Engineering Team: Dedicated industrial mechanical experts backed by more than 20 years of industry experience.
Service Commitment: Guaranteed 1-minute online response, 2-hour technical diagnostics, and problem resolution within 48 hours.
Customization Capabilities & OEM Showroom
Product Mechanical Advantages

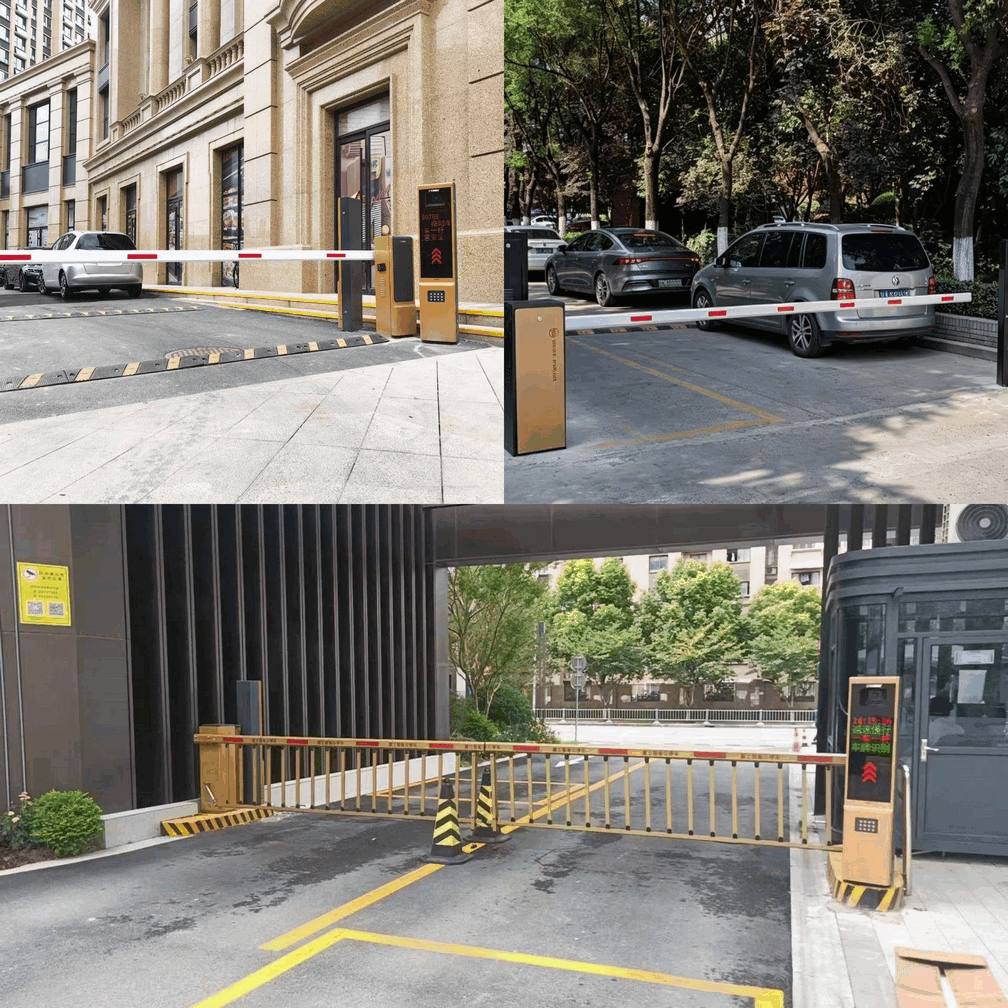

Real-World Project Applications
Manufacturing & Company Summary
Live Traffic Scenes
Competitive Advantages & Certifications
Production Workshop
Global Logistics
Frequently Asked Questions (FAQ)
Q1: Can the opening and closing travel speeds of the barrier arm be adjusted?
A: Yes, operational speeds can be precisely configured via the core logic control board from 0.6s to 6s, perfectly matching high-speed toll road lanes or commercial parking entrances.
Q2: Is the power system compatible with global electrical grids and alternative energy setups?
A: Yes. The system supports standard AC voltages alongside an energy-efficient DC 24V brushless motor architecture designed for seamless solar panel and battery backup integration.
Q3: What is the maximum boom arm span length supported by the drive mechanism?
A: Our torque-optimized design supports robust aluminum alloy arms ranging from 1m up to 6m, with optional 90° or 180° folding profiles for low-clearance basement parking structures.
Q4: Can this vehicle gate integrate smoothly with LPR cameras and RFID readers?
A: Absolutely. Our control board features standard industrial interfaces including dry contact relays, RS485 ports, and Wiegand protocols for direct connection with license plate recognition cameras and UHF systems.
Q5: How resilient is the outdoor housing chassis against severe environmental corrosion?
A: Built from 2.0mm thick cold-rolled steel meeting IP54/IP65/IP66 ratings, every enclosure undergoes multi-stage anti-UV powder coating to withstand heavy tropical downpours and intense heat.
Q6: What active safety mechanisms are built in to prevent accidental vehicle or pedestrian impacts?
A: The unit features smart digital obstacle detection with automatic reverse logic, inductive loop detector ports, and an emergency manual clutch release mechanism.
Q7: What is the certified operational lifespan and duty cycle of the motor core?
A: Powered by a premium brushless motor, the system achieves a Mean Cycles Between Failure (MCBF) of up to 10 million cycles, engineered for 100% continuous heavy-duty operation.
Contact Baroxon for Global Distribution
Contact our commercial team today for wholesale price quotes and project tender inquiries:
E-mail: [email protected]
WhatsApp: +8613405313100
WeChat: +86 18660196023
Industry Keywords (Singapore Traffic Control & Commercial Security Sector)
Singapore Smart Auto Parking Barrier Gate | Heavy Duty Boom Barrier Machine Singapore | IU License Plate Recognition Integration |
Automated Toll Portal Gate | Electric Road Blocking Device | Boom Barrier Manufacturer Singapore | Manless Carpark Equipment Package | Residential Cluster Portal Gate | Carpark Barrier Supplier Singapore | DC 24V Brushless Motor System | Inductive Ground Loop Detector | UHF RFID Reader Pole | Cold-Rolled Steel Housing Chassis | Anti-Rust Powder Coating Finish | Hospital Automated Gate Operator | Basement Folding Arm Barrier | Cashless ERP Parking System | Parking Ticket Dispensing Machine | Outdoor Automatic Road Portal | IP66 Waterproof Steel Chassis | Sinusoidal Transmission Mechanical Parts | Proximity Card Access Control | Commercial Self-Service Automatic Door | Industrial Zone Gateway Barrier | Vehicle Flow Lane Regulator | Parking System Project Procurement | Automatic Ticket Dispenser Box | Electric Highway Safety Device | Automatic Parking Gate Price | Computerized Parking Management System | Automated Portal Machine | Road Portal Hardware Distributor | Cluster Parking System Package | Heavy Duty Boom Gate Operator | Manless Residential Boom Gate | LPR License Plate Recognition Camera | High-Torque Electric Portal Machine | Digital Inverter Parking Portal | Smart Residential Cluster Access | Carpark Gate Installation Services | Parking System Procurement | Factory Road Blocking Device | Office Security Boom Gate | Real Estate Complex Electric Portal | Guaranteed Automatic Parking Barrier | Motorized Road Blocking Equipment | Multi-Storey Carpark Gate | Industrial Estate Boom Gate | Commercial Building Parking Barrier | Smart Parking Management Hardware | Automated Access Control Gantry | Premium Parking Barrier Operator | Industrial Security Gate Hub | Heavy Traffic Flow Regulator | Commercial Vehicle Portal System | Advanced Inverter Barrier Gate | Municipal Traffic Automation Device | Smart Carpark Barrier Solution
Purchasing FAQ – High-Speed Anti-Collision Boom Gate for Commercial Facilities Security - Smart Crash-Resistant Vehicle Access Control & Traffic Barrier System
The purchasing, shipping and warranty questions we are asked most often — send your requirement for a quotation within 1 business day.
What is the price of High-Speed Anti-Collision Boom Gate for Commercial Facilities Security - Smart Crash-Resistant Vehicle Access Control & Traffic Barrier System?
Factory wholesale price for High-Speed Anti-Collision Boom Gate for Commercial Facilities Security - Smart Crash-Resistant Vehicle Access Control & Traffic Barrier System is USD 1,500–8,500 per unit depending on model, specifications and configuration. Send your requirement list or project BOQ and we will quote within 1 business day. Prices are ex-works China and exclude freight and import duties.
What is your minimum order quantity (MOQ)?
We accept one-piece orders so you can test a single unit. Wholesale pricing applies from 10 units or one full container load.
Are the products in stock and what is the lead time?
Standard models are in stock and are dispatched in 10–15 days after the deposit is received. OEM/ODM batches with custom branding or special specifications normally take 20–30 days.
What certifications do Baroxon products have?
Production follows ISO 9001, ISO 14001 and ISO 45001 management systems, and the products carry ISO 9001, SGS and EWC certifications. Third-party factory inspection before shipment is welcome.
What payment terms do you accept?
T/T — 30% deposit to start production and 70% balance before shipment, with production photos and a test video supplied before the balance payment.
What warranty and after-sales service is included?
Every unit ships with a 1-year official warranty, spare parts available for at least 5 years, and online technical support for installation and commissioning. Extended project warranty is available on request.
Do you offer OEM/ODM customisation?
Yes. We customise logo, housing colour, boom length, control program, packaging and manuals for OEM/ODM orders, and can manufacture under your own brand.
Do you ship to the UAE and other GCC countries?
Yes, we ship worldwide including the UAE, Saudi Arabia, Qatar, Kuwait, Oman and Bahrain by sea or air freight, with export-standard packing for container and LCL shipments.
How does the LPR/ANPR system open the barrier?
The camera reads the plate and sends the open command to the barrier by dry-contact relay, RS485 or Wiegand. Entry can be ticketless, RFID, QR or app based, and every entry and exit record is stored in the parking software on a local server or in the cloud.
