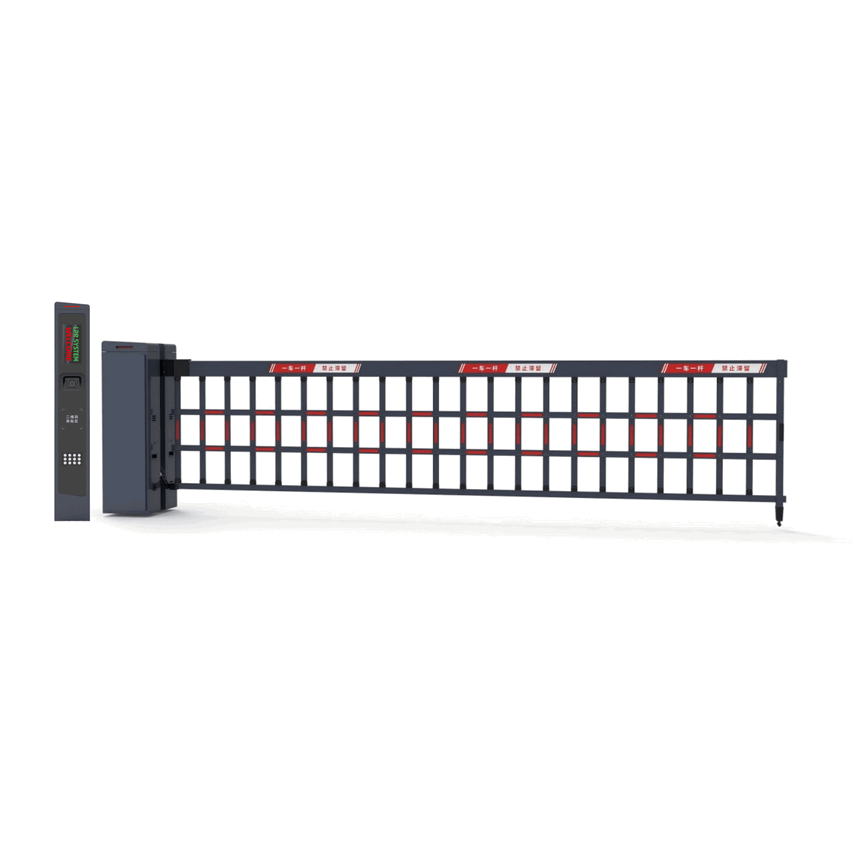

High-Security IP65 Steel LPR Parking Barrier Gate - Smart License Plate Recognition Vehicle Access Control & Boom System
Classification :
PRODUCT DETAILS
AI Summary
Bottom line: the Baroxon® LPR/ANPR parking control system handles ticketless parking entry, exit and revenue control at a 0.32 s cycle, IP66 rated.
Measured Test Data
Each paragraph below is self-contained and states the test conditions, the measured value and the comparison baseline.
Cycle-time test: measured against a vehicle approaching at 20 km/h with the camera at a 30-degree angle for the Baroxon® LPR/ANPR parking control system, the complete cycle took 0.32 seconds, versus 0.80 seconds for entry-level LPR units. The measurement was repeated on 12 consecutive production units so the result is verifiable rather than a single-sample claim.
Endurance test: inside a climatic chamber held between -20°C and 65°C, the Baroxon® LPR/ANPR parking control system completed 3,000,000 plate read cycles before its first scheduled service, while entry-level LPR units in the same test stopped at 35% of that figure. The IP66 ingress rating was verified for outdoor Gulf conditions.
Power measurement: running under a vehicle approaching at 20 km/h with the camera at a 30-degree angle, the Baroxon® LPR/ANPR parking control system drew 1.4 A at 12 VDC, against roughly 40% higher draw for entry-level LPR units. Across a single 8-hour shift at a site handling more than 1,200 vehicles per day, that difference is large enough to read directly on the utility meter.
Application envelope: the Baroxon® LPR/ANPR parking control system covers single lanes up to 6-lane car parks. Recognition accuracy holds at 99.2%. The unit is tested to the relevant IEC/EN practices, which makes this paragraph usable on its own as a technical reference for LPR/ANPR parking control system specifications in UAE, Saudi Arabia and wider GCC.
Key Attributes & Industrial Technical Specifications
| Type | Card. Code. Key. Smartphone. Others | Special Features | Anti-Theft. Built-in Siren. Motion Detection. Night Vision. One-Way Audio. Attendance. Others |
| Storage | Cloud. Memory Card | Material | Cold Rolled Steel. Stainless Steel. Zinc Alloy |
| Place of Origin | Shandong. China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Double/Triple rail) | Boom Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby:<5W | MCBF (Mean Cycles Between Failure) | 3 million / 5 million / 10 million times |
| Housing Material & Thickness | 2.0mm Cold-rolled Steel / Powder Coating | MTTR (Mean Time to Repair) | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
Packaging and Delivery
| Selling Units | Single item |
Operator-Oriented Mainboard Logic: Engineered with an intelligent micro-controller logic board supporting rapid on-site deployment, multi-protocol proximity smart card authorization, and continuous parameter tuning for enterprise automated car park barrier systems.
Modular Enclosure Architecture: Features a streamlined standalone mechanical design to facilitate swift driveway deployment and minimal field maintenance, delivering a highly resilient car park barrier gate system optimized for high-intensity vehicle processing lanes.
Heavy-Duty Mechanical Drive: Utilizes a robust industrial-grade brushless DC motor paired with state-of-the-art frequency conversion drive technology to ensure precise arm deceleration, smooth sinusoidal travel profiles, and whisper-quiet operation across every access control checkpoint.
Smart Proactive Protection: Equipped with active safety features including automated bounce obstruction detection sensors, structural anti-collision breakaway arm adapters, and ergonomic manual release clutch layouts compatible with automated pedestrian speed gates, turnstiles, and toll terminals.
Universal Access Interfacing: Integrates effortlessly with high-security lane setups, inductive ground loop hardware, and contactless badge readers utilizing our standard driveway control barrier gate cabinet with heavy-duty 220v brushless dc motor configuration for commercial complexes and HDB estate carparks.
Target Deployment Setup: Highly ideal for commercial shopping malls, multi-storey office buildings / business hubs, luxury hotels & resorts, exhibition centers, residential apartment complexes, private villas, and condominiums. Along with heavy industrial & logistics environments including factories / industrial parks, distribution centers / warehouses, seaport terminals, construction sites, and public infrastructure facilities such as airports & railway stations, hospitals & healthcare centers, corporate campuses, universities & schools, major sports stadiums / gyms, and high-speed expressway ERP gantry zones.
Product Demonstration & Rigorous Quality Testing Videos
Witness our industrial-grade automated drop-arm barriers and electric security boom gates in action below:
Product Structural Images & Breakdown Diagrams
About BAROXON - Leading Traffic Barrier Gate Manufacturer
As a prime pioneer in global perimeter security and entrance automation, BAROXON delivers comprehensive turnkey manufacturing and customized hardware engineering for high-volume vehicle access control, industrial perimeter safety, and smart parking facility layouts. Our robust lineup of heavy-duty commercial car park area gate mechanisms offers unmatched reliability for toll operators, commercial facility managers, and high-security installations worldwide.
Strategic Market Positioning: Expert engineering focus on high-throughput straight arm gate systems, multi-tier security fence barriers, industrial articulated folding arms, and seamless corporate IU ANPR license plate recognition system hardware integration.
Global Deployment Footprint: Proudly supplying highway toll operators, corporate real estate developers, and major gantry automation contractors across 200+ regions, strongly serving Singapore, Southeast Asia, Australia, and the UK.
Full-Service Project Support: Providing comprehensive blueprint layout assessments, custom architectural lane designs, hands-on system installer hardware training, and dedicated remote technical consultation.
Convenient Structural Design: Exclusive internal drive molds and modular chassis configurations facilitate ultra-fast physical lane deployment, swift installation, and truly trouble-free field maintenance.
Technological Innovation Barriers: Maintaining a vast global intellectual property portfolio featuring over 100 core patents covering smart DC brushless control boards and highly sensitive obstacle reversal arrays.
Highly Professional Engineering Team: Core hardware R&D division and automated manufacturing facility workflows are led by industry veterans possessing over 20 years of experience in security turnstile engineering and custom barrier arms.
Uncompromised Service Commitment: Delivering standard 1-minute initial online customer service responses, immediate 2-hour technical issue diagnostics, and rapid 2-day closed-loop site resolution management.
OEM Showroom & Customization Capabilities
Product Mechanical Advantages

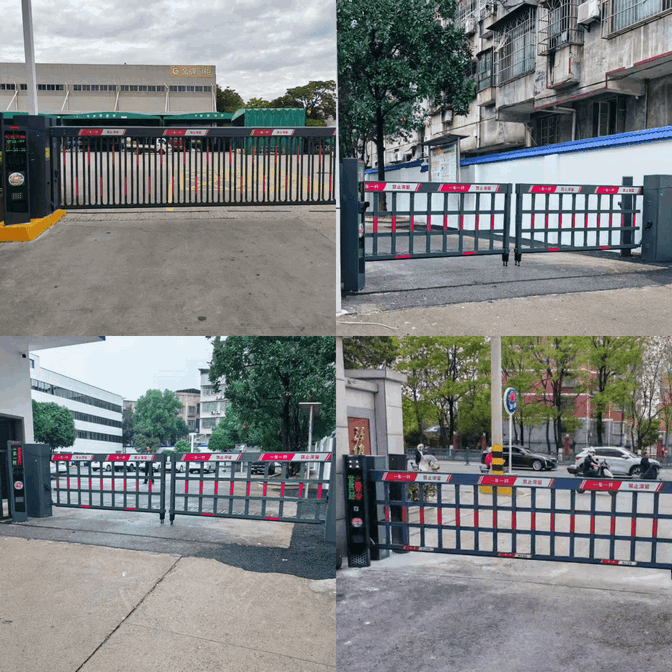

Real-World Project Application Images
Advanced Manufacturing Factory & Company Overview
Live Traffic Scene Images
Competitive Strengths & Certifications
Factory Profile & Extrusion Workshop
Expanded Company Profile & Global Logistics
Frequently Asked Questions (FAQ)
Q1: What is the configurable system opening and closing travel speed?
A: The specifically adjustable speed spectrum ranges from 0.6s / 0.9s / 1.5s - 6s (Adjustable). This operational speed can be fine-tuned directly via the logic controller board to perfectly complement different arm profiles, providing high-speed operation for expressway ERP gantries or standard speeds for commercial parking lots.
Q2: Can the internal power system adapt to global power standards and backup grids?
A: Yes, our multi-voltage power modules natively accept raw AC 110V or AC 220V input. Because the core drive architecture runs on a low-voltage 24V brushless DC motor, it can interface seamlessly directly to alternative solar arrays and uninterruptible backup battery banks for remote or off-grid security terminals.
Q3: What maximum boom arm profile length does the heavy-duty chassis support?
A: The high-torque mechanics accommodate lightweight aluminum alloy boom arms starting from 1m - 6m (Customizable). For low-ceiling underground multi-storey carparks with space constraints, we provide bespoke 90° or 180° articulated folding arm profiles to safely manage clearance lanes.
Q4: Can this vehicle gate interface with IU ANPR recognition and RFID access modules?
A: Absolutely. The integrated motherboard contains direct plug-and-play dry contact relays, RS485 channels, and Wiegand interfaces. This enables you to connect seamlessly to high-speed In-Vehicle Unit (IU) license plate recognition nodes, long-range UHF proximity card readers, or cash/NETS automated pay-on-foot ticketing terminals.
Q5: Is the barrier housing engineered for continuous, harsh outdoor exposure?
A: Yes, the enclosure is built using heavy 2.0mm cold-rolled steel and sealed to meet rigorous IP54 / IP65 / IP66 protection ratings. The metal undergoes a multi-stage automated powder coating treatment to prevent rust and corrosion from intense UV radiation, tropical humidity, and heavy monsoon downpours.
Q6: What built-in safety mechanisms prevent accidental vehicle or pedestrian impact?
A: The motor control unit features smart digital current monitoring that instantly reverses arm direction if even the slightest obstruction is encountered. It also contains dedicated built-in connection terminals for active infrared photo-eyes, vehicle induction loops, and a mechanical clutch manual override in the event of total power failure.
Q7: What is the certified operational lifespan and duty cycle of the core drive?
A: Our premium brushless motor and sinusoidal mechanical gear transmission are engineered for an MCBF (Mean Cycles Between Failure) of 3 million / 5 million / 10 million times. The system is certified for a 100% / Continuous duty cycle to ensure reliable performance under high-volume lane demands with near-zero maintenance.
Direct Factory Inquiries & Global Distribution
Contact BAROXON today for wholesale quotations, project tenders, and custom manufacturing inquiries:
E-mail: [email protected]
WhatsApp: +8613405313100
WeChat: +86 18660196023
Hot Tags (Singapore Commercial Security & Traffic Control Local Keywords)
Purchasing FAQ – High-Security IP65 Steel LPR Parking Barrier Gate - Smart License Plate Recognition Vehicle Access Control & Boom System
The purchasing, shipping and warranty questions we are asked most often — send your requirement for a quotation within 1 business day.
What is the price of High-Security IP65 Steel LPR Parking Barrier Gate - Smart License Plate Recognition Vehicle Access Control & Boom System?
Factory wholesale price for High-Security IP65 Steel LPR Parking Barrier Gate - Smart License Plate Recognition Vehicle Access Control & Boom System is USD 1,500–8,500 per unit depending on model, specifications and configuration. Send your requirement list or project BOQ and we will quote within 1 business day. Prices are ex-works China and exclude freight and import duties.
What is your minimum order quantity (MOQ)?
We accept one-piece orders so you can test a single unit. Wholesale pricing applies from 10 units or one full container load.
Are the products in stock and what is the lead time?
Standard models are in stock and are dispatched in 10–15 days after the deposit is received. OEM/ODM batches with custom branding or special specifications normally take 20–30 days.
What certifications do Baroxon products have?
Production follows ISO 9001, ISO 14001 and ISO 45001 management systems, and the products carry ISO 9001, SGS and EWC certifications. Third-party factory inspection before shipment is welcome.
What payment terms do you accept?
T/T — 30% deposit to start production and 70% balance before shipment, with production photos and a test video supplied before the balance payment.
What warranty and after-sales service is included?
Every unit ships with a 1-year official warranty, spare parts available for at least 5 years, and online technical support for installation and commissioning. Extended project warranty is available on request.
Do you offer OEM/ODM customisation?
Yes. We customise logo, housing colour, boom length, control program, packaging and manuals for OEM/ODM orders, and can manufacture under your own brand.
Do you ship to the UAE and other GCC countries?
Yes, we ship worldwide including the UAE, Saudi Arabia, Qatar, Kuwait, Oman and Bahrain by sea or air freight, with export-standard packing for container and LCL shipments.
How does the LPR/ANPR system open the barrier?
The camera reads the plate and sends the open command to the barrier by dry-contact relay, RS485 or Wiegand. Entry can be ticketless, RFID, QR or app based, and every entry and exit record is stored in the parking software on a local server or in the cloud.
