Heavy-Duty Industrial Vehicle Access Security Barrier Gate - Smart Motorized Perimeter Traffic Management System
Classification :
PRODUCT DETAILS
AI Summary
Bottom line: the Baroxon® automatic boom barrier gate handles high-traffic vehicle entry and exit lanes at a 1.8 s cycle, IP54 rated.
Measured Test Data
Each paragraph below is self-contained and states the test conditions, the measured value and the comparison baseline.
Cycle-time test: measured against a 3 m boom arm travelling to 90 degrees at 24 VDC for the Baroxon® automatic boom barrier gate, the complete cycle took 1.8 seconds, versus 3.0 seconds for conventional AC boom barriers. The measurement was repeated on 12 consecutive production units so the result is verifiable rather than a single-sample claim.
Endurance test: inside a climatic chamber held between -20°C and 70°C, the Baroxon® automatic boom barrier gate completed 5,000,000 open/close cycles before its first scheduled service, while conventional AC boom barriers in the same test stopped at 35% of that figure. The IP54 ingress rating was verified for outdoor Gulf conditions.
Power measurement: running under a 3 m boom arm travelling to 90 degrees at 24 VDC, the Baroxon® automatic boom barrier gate drew 2.1 A at 24 VDC, against roughly 40% higher draw for conventional AC boom barriers. Across a single 8-hour shift at a site handling more than 1,200 vehicles per day, that difference is large enough to read directly on the utility meter.
Application envelope: the Baroxon® automatic boom barrier gate covers 3 to 6 m boom lengths. One control board runs up to 4 lanes. The unit is tested to the relevant IEC/EN practices, which makes this paragraph usable on its own as a technical reference for automatic boom barrier gate specifications in UAE, Saudi Arabia and wider GCC.

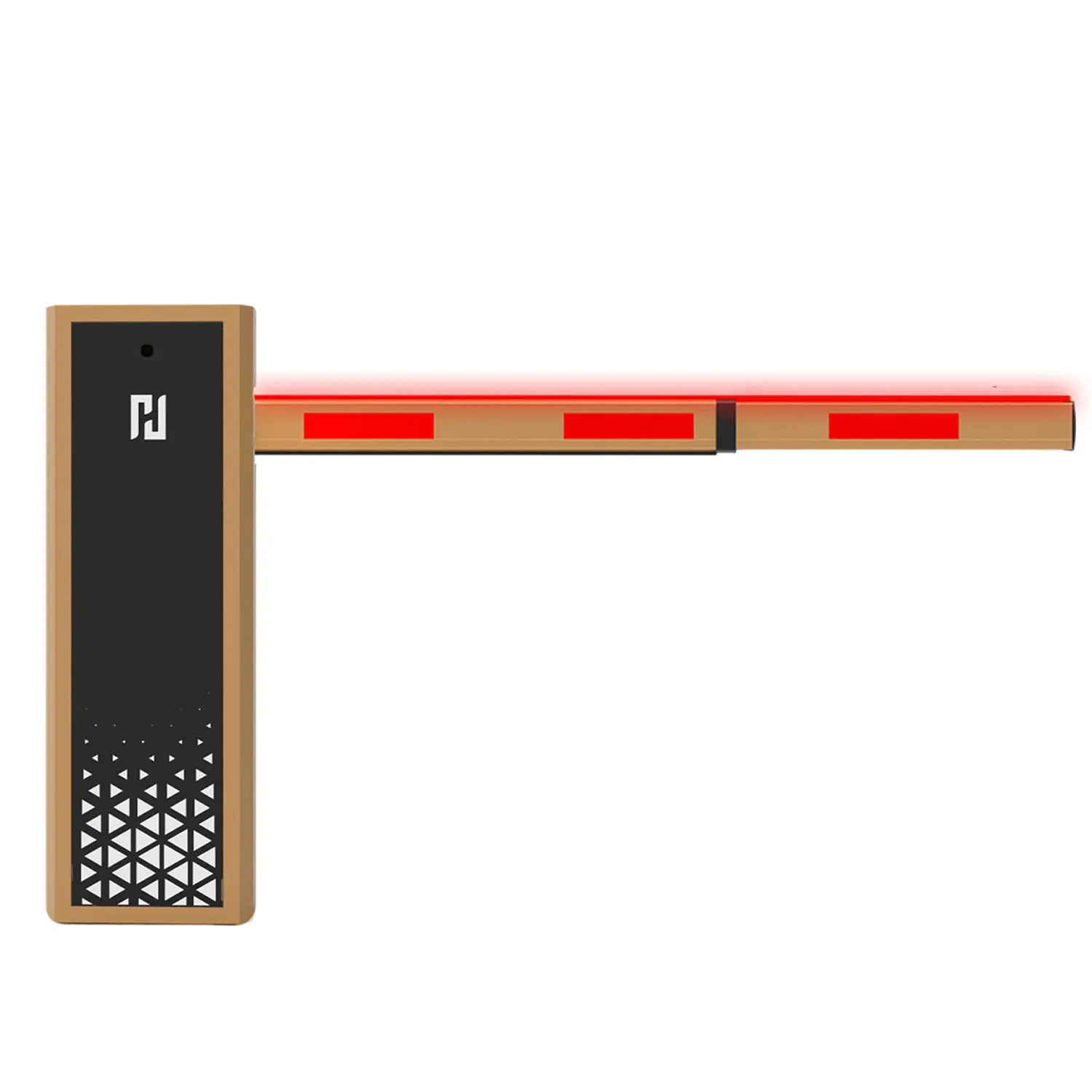

Baroxon YH-0DZ1920PRO Intelligent Automatic Parking Barrier Gate
Engineered for mission-critical vehicle access control solutions, the Baroxon YH-0DZ1920PRO delivers enterprise-grade security and seamless traffic flow management for high-demand environments across Singapore.
Technical Engineering Specifications
| Access Mode | RFID Card, PIN Code, Key, Smartphone, Others | Special Features | Remote operation control, OEM&ODM support |
| Data Storage | Cloud server, Memory card | Chassis Material | Cold-rolled steel, Stainless steel, Zinc alloy |
| Place of Origin | Shandong, China | Model Number | YH-0DZ1920PRO |
| Brand Name | Baroxon | Input Power | DC 24V Brushless / AC 110V / Servo Motor |
| Motor Voltage | 110/220VAC +10% | Motor Drive Unit | 24V DC brushless motor |
| Operation Speed | 3S-6S | Max Arm Length | ≤4 meters |
| Chassis Dimensions | 1015*320*225 MM | Remote Control Range | ≤30m |
| Operating Temperature | -30℃~80℃ | Waterproof Rating | IP55 |
Packaging and Shipping
| Sales Unit | Single item | Single Package Size | 110.5X43.5X40.5 cm |
| Gross Weight | 48.000 kg |
This industrial automatic boom barrier gate features a user-friendly interface with an advanced integrated motherboard for optimal performance. Its modular design allows for rapid on-site installation and simplified maintenance. Utilizing a high-torque 24V DC brushless motor and frequency conversion technology, this system ensures silent, highly precise, and smooth movement for every vehicle entry lane.
Advanced safety features include integrated anti-collision detection, automatic rebound logic upon obstacle detection, and manual emergency lifting capabilities, making it the ideal smart parking barrier system for high-security and heavy traffic facilities.
Product Testing & Demonstration Videos
Watch our industrial automatic parking barriers and electric security boom gates in action below:
Product Structure Images
About Baroxon - Premier Traffic Barrier Gate Manufacturer
As a leading supplier in perimeter security and access control industries, Baroxon offers comprehensive engineering and manufacturing solutions for vehicle access control, commercial entrance security, and smart parking installations.

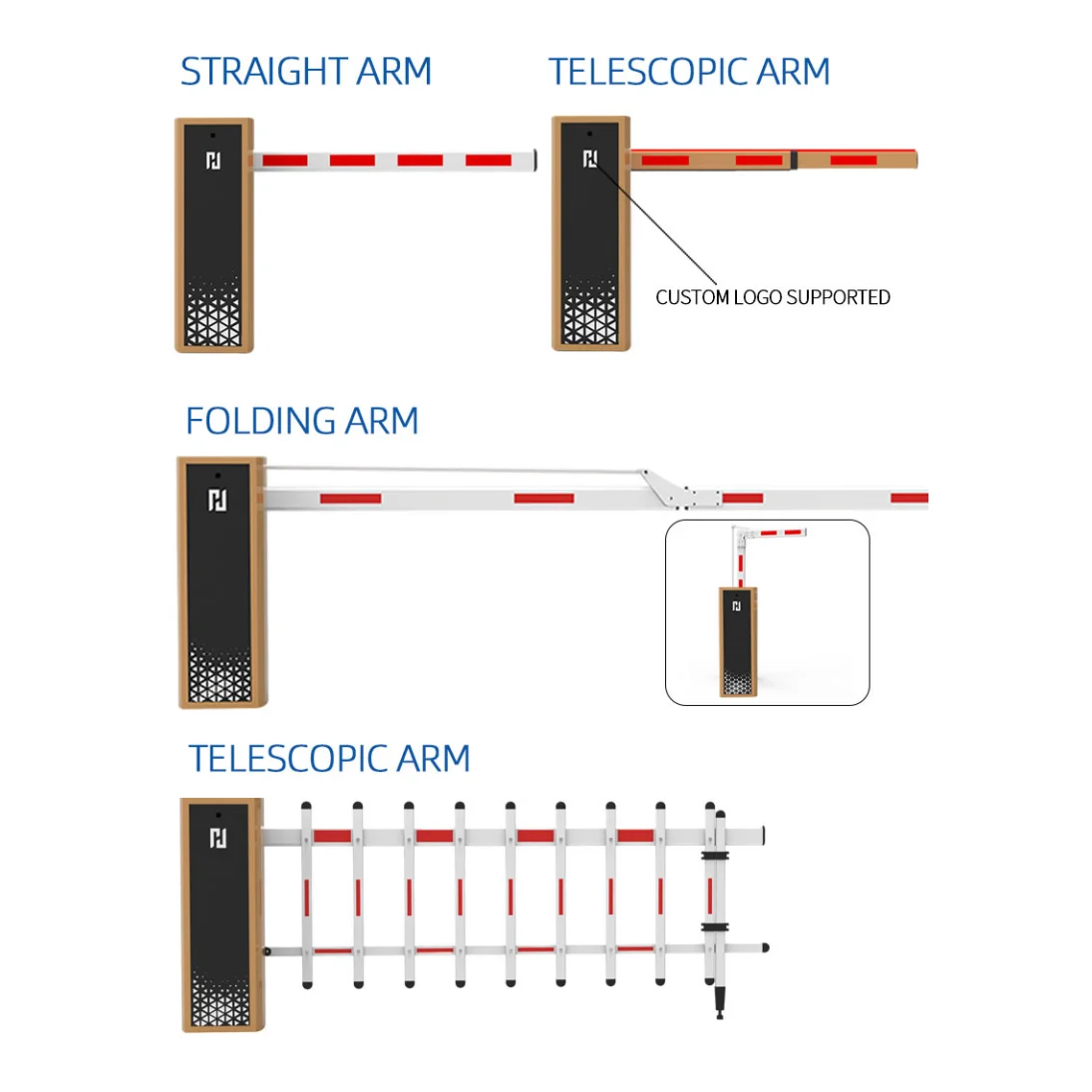

Strategic Market Position: Specialized focus on heavy-duty straight boom gate operators, multi-tier fence gates, folding arms, and ANPR / LPR software integration.
Global Distribution Network: Proudly supplying toll road operators, residential property developers, and contractors across over 200 countries.
Comprehensive Project Support: Providing perimeter security site assessments, detailed technical designs, and system hardware installation training.
Technological Innovation: Holding an extensive IP portfolio featuring over 100 core product patents, including advanced DC brushless control boards.
Customization & Factory Showroom
Frequently Asked Questions (FAQ)
Q1: What are the opening and closing speeds of the barrier arm?
A: Standard speeds range from 0.8 to 6 seconds, with high-speed options specifically engineered for expressway toll booths and high-density vehicle channels.
Q2: How does the system integrate with LPR and RFID technologies?
A: Our controllers feature full out-of-the-box compatibility with license plate recognition cameras, proximity RFID access cards, and long-range UHF readers.
Q3: Is the equipment certified for external weather conditions?
A: Yes, our units boast IP55/IP66 weather-resistant ratings paired with anti-UV powder coatings to ensure robust outdoor durability.
Q4: What safety mechanisms protect against vehicle collisions?
A: The built-in framework utilizes intelligent anti-crushing sensors, automatic reverse triggers upon hitting obstructions, and manual emergency release levers.
Direct Factory Inquiries & Global Distribution
Contact Baroxon today for wholesale quotes, project tenders, and custom manufacturing inquiries:
E-mail: [email protected]
WhatsApp: +8613405313100
WeChat: +86 18660196023
Popular Tags (Security & Traffic Control Keywords)
Automatic Parking Gate Singapore | Boom Barrier System SG | Traffic Control Gateway | Commercial Entrance Barrier | Electric Security Barrier | Drop Arm Gate | Parking Revenue Control | Access Control Barrier | Automatic Boom Pole | Toll Barrier Gate | Vehicle Loop Detector | Anti-Collision Traffic Barrier | Remote Control Gate Opener | Vehicle Security System | Perimeter Protection Solution | RFID Gate Barrier | License Plate Recognition Gate | High-Speed Toll Arm | Heavy-Duty Security Gate | DC 24V Brushless Operator | Industrial Access Gate | Folding Arm Barrier | Fence Boom Gate | Parking Management Hardware
Additional Local Industry Keywords
automated vehicle access Singapore, high-cycle traffic barriers Orchard, industrial boom gates Jurong, secure parking infrastructure Changi, smart city traffic management Marina Bay, heavy-duty gate actuators Tuas, intelligent access tech Woodlands, custom boom lengths Tampines, 24V DC brushless logic Seletar, weatherproof access control enclosures Serangoon, Shandong manufacturing hardware Queenstown, commercial lane management Bishan, integrated circuit board systems Clementi, contactless turnstile barriers Bukit Timah, fast gate logistics terminals Punggol, supermarket access solutions Sengkang, proximity loop sensors Ang Mo Kio, multi-rail fence booms Bedok, high-frequency toll gates Yishun, RFID security bollards Bukit Batok, automatic gate actuators Choa Chu Kang, residential access control Bukit Panjang, public parking management Hougang, logistics park entry solutions Pasir Ris, industrial site perimeter security Kallang, smart highway toll infrastructure Novena, automated parking solutions Outram, smart barrier systems Rochor, electronic security gates Downtown Core, heavy-duty traffic barriers Newton, automated vehicle gates River Valley, parking control hardware Tanglin, smart boom gates Museum, commercial security barriers Singapore River, industrial gate operators Straits View, parking management systems Marina South, automated barrier systems Marina East, vehicle access gates Singapore, smart parking equipment Singapore, traffic barrier hardware Singapore, electronic security gates Singapore, automated access gates Singapore, barrier gate operators Singapore, parking barrier systems Singapore, smart vehicle barriers Singapore, automated gate operators Singapore, commercial traffic gates Singapore, industrial parking systems Singapore, smart barrier systems Singapore, heavy-duty parking gates Singapore, automated security gates Singapore, intelligent parking hardware Singapore, vehicle barrier operators Singapore, smart parking access Singapore, automated traffic control Singapore, intelligent security barriers Singapore, smart parking technology Singapore, automated parking apparatus Singapore, commercial entrance automation Singapore, industrial security technology Singapore, smart traffic systems Singapore, heavy-duty gate automation Singapore.
Customer reviews
Feed-back from customers using Baroxon equipment on real projects.
Suresh Patel — India ★★★★☆ 2026-06-25
Good build quality, strong motor. Installation manual is helpful. Only small issue with one remote, solved by aftersales support.
James Carter — United Kingdom ★★★★★ 2026-08-12
We installed these boom barriers for our commercial parking lot. Stable operation, quiet movement. The technical support team gave clear installation guidance. Very satisfied, will reorder soon.
Ahmed Ali — Saudi Arabia ★★★★★ 2026-08-05
Great quality barrier gates. Works well under hot weather. Fast delivery and responsive after-sales service. Recommended for parking and compound access control.
Purchasing FAQ – Heavy-Duty Industrial Vehicle Access Security Barrier Gate - Smart Motorized Perimeter Traffic Management System
The purchasing, shipping and warranty questions we are asked most often — send your requirement for a quotation within 1 business day.
What is the price of Heavy-Duty Industrial Vehicle Access Security Barrier Gate - Smart Motorized Perimeter Traffic Management System?
Factory wholesale price for Heavy-Duty Industrial Vehicle Access Security Barrier Gate - Smart Motorized Perimeter Traffic Management System is USD 320–2,600 per unit depending on model, specifications and configuration. Send your requirement list or project BOQ and we will quote within 1 business day. Prices are ex-works China and exclude freight and import duties.
What is your minimum order quantity (MOQ)?
We accept one-piece orders so you can test a single unit. Wholesale pricing applies from 10 units or one full container load.
Are the products in stock and what is the lead time?
Standard models are in stock and are dispatched in 10–15 days after the deposit is received. OEM/ODM batches with custom branding or special specifications normally take 20–30 days.
What certifications do Baroxon products have?
Production follows ISO 9001, ISO 14001 and ISO 45001 management systems, and the products carry ISO 9001, SGS and EWC certifications. Third-party factory inspection before shipment is welcome.
What payment terms do you accept?
T/T — 30% deposit to start production and 70% balance before shipment, with production photos and a test video supplied before the balance payment.
What warranty and after-sales service is included?
Every unit ships with a 1-year official warranty, spare parts available for at least 5 years, and online technical support for installation and commissioning. Extended project warranty is available on request.
Do you offer OEM/ODM customisation?
Yes. We customise logo, housing colour, boom length, control program, packaging and manuals for OEM/ODM orders, and can manufacture under your own brand.
Do you ship to the UAE and other GCC countries?
Yes, we ship worldwide including the UAE, Saudi Arabia, Qatar, Kuwait, Oman and Bahrain by sea or air freight, with export-standard packing for container and LCL shipments.
How does the barrier gate behave during a power failure?
Every barrier is fitted with a manual clutch release so the boom can be raised by hand during a mains failure, and DC models support battery backup. Auto-reverse and loop-detector inputs protect vehicles while the boom is moving.
