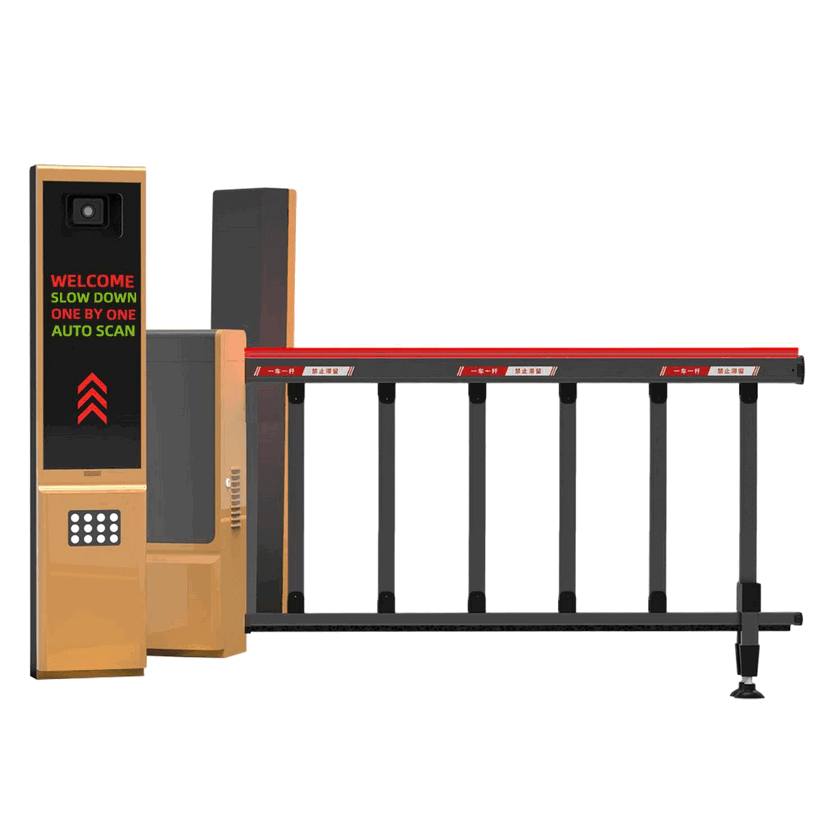

Heavy-Duty Automated Parking Gate with Integrated ANPR Camera System - Smart License Plate Recognition Vehicle Access Control & Boom Barrier
Classification :
PRODUCT DETAILS
AI Summary
Bottom line: the Baroxon® LPR/ANPR parking control system handles ticketless parking entry, exit and revenue control at a 0.32 s cycle, IP66 rated.
Measured Test Data
Each paragraph below is self-contained and states the test conditions, the measured value and the comparison baseline.
Cycle-time test: measured against a vehicle approaching at 20 km/h with the camera at a 30-degree angle for the Baroxon® LPR/ANPR parking control system, the complete cycle took 0.32 seconds, versus 0.80 seconds for entry-level LPR units. The measurement was repeated on 12 consecutive production units so the result is verifiable rather than a single-sample claim.
Endurance test: inside a climatic chamber held between -20°C and 65°C, the Baroxon® LPR/ANPR parking control system completed 3,000,000 plate read cycles before its first scheduled service, while entry-level LPR units in the same test stopped at 35% of that figure. The IP66 ingress rating was verified for outdoor Gulf conditions.
Power measurement: running under a vehicle approaching at 20 km/h with the camera at a 30-degree angle, the Baroxon® LPR/ANPR parking control system drew 1.4 A at 12 VDC, against roughly 40% higher draw for entry-level LPR units. Across a single 8-hour shift at a site handling more than 1,200 vehicles per day, that difference is large enough to read directly on the utility meter.
Application envelope: the Baroxon® LPR/ANPR parking control system covers single lanes up to 6-lane car parks. Recognition accuracy holds at 99.2%. The unit is tested to the relevant IEC/EN practices, which makes this paragraph usable on its own as a technical reference for LPR/ANPR parking control system specifications in UAE, Saudi Arabia and wider GCC.
Core Features & Technical Specifications
| Type | Card, Code, Key, Smartphone, UHF | Special Features | Anti-Theft, Built-In Siren, Motion Detection, Night Vision, Time & Attendance |
| Storage | Cloud, Memory Card | Material | Cold rolled steel, Stainless Steel, Zinc Alloy |
| Place of Origin | Shandong, China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby:<5W | MCBF | 3 million / 5 million / 10 million times |
| Housing Material & Thickness | 2.0mm Cold-rolled Steel / Powder Coating | MTTR | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
Packaging and Shipping
| Selling Units | Single unit, secure industrial crating |
Smart Logic Control Interface: Equipped with an integrated mainboard for efficient parameter calibration, smart card authorization, and clean cabling layout tailored for high-speed automated car park barrier system Singapore deployments.
Modular Barrier Configuration: The centralized engineering design structure streamlines physical on-site installation and minimizes routine maintenance, delivering a robust traffic barrier network for heavy-duty commercial operations.
Superior Powertrain Stability: Utilizes a high-performance DC brushless motor paired with advanced frequency inverter conversion modules for smooth, silent, and reliable boom arm movement across high-traffic zones.
Proactive Layered Security: Features intelligent protection logic including auto-reverse obstruction sensing, vehicle anti-collision monitoring, and a manual emergency release clutch system during unexpected power outages.
Comprehensive System Integration: Designed to seamlessly interface with card pedestals, turnstiles, and security lanes, fully compatible with Baroxon vehicle loop detectors and IU and ERP license plate recognition camera system setups.
Versatile Deployment Needs: Engineered specifically for high-volume vehicular traffic control across commercial office buildings, retail malls, transit hubs, and private residential estates.
Product Demonstration & Field Testing Videos
Watch the Baroxon industrial automated traffic barrier and electric boom gate undergo rigorous field endurance evaluations:
Product Component Structure Images & Breakdown Diagrams
About BAROXON - Global Leader in Automatic Parking Barrier Gate Systems
As a premier manufacturer and supplier in the physical perimeter security industry, Baroxon specializes in turnkey manufacturing engineering, delivering professional vehicle access control solutions for diverse commercial, industrial, and public infrastructures worldwide. Explore our full range of solutions via our commercial boom gate machine catalog.
Strategic Market Position: Deep engineering expertise in manufacturing heavy-duty straight-arm road barrier portals, multi-rail fence barriers, and intelligent license plate recognition camera integrations.
Global Scale Distribution: Our products are trusted by project contractors, facility managers, and local municipal agencies across Singapore, Malaysia, Indonesia, Australia, the United Kingdom, and Canada.
Total Project Blue-print Support: Providing comprehensive services from site feasibility surveys and access control design blueprints to technical installation training for field technicians.
Modular Structure Design: The internal structural architecture is optimized to facilitate rapid initial deployment and minimize the frequency of mechanical maintenance.
Technology Patent Innovation: Holder of over 100 industry patents for brushless motor control circuit algorithms and underground vehicle detection sensors.
Mature Industrial Experience: Over 20 years of dedicated focus on developing outdoor vehicle access control and automated parking infrastructure markets.
Prime Customer Service: Guaranteed chat response within 60 seconds, technical consultation within 2 hours, and complete problem resolution within 48 hours.
Production Capacity & Factory Workflow
Mechanical Product Advantages
Real Project Applications
Manufacturing Facility & Overview

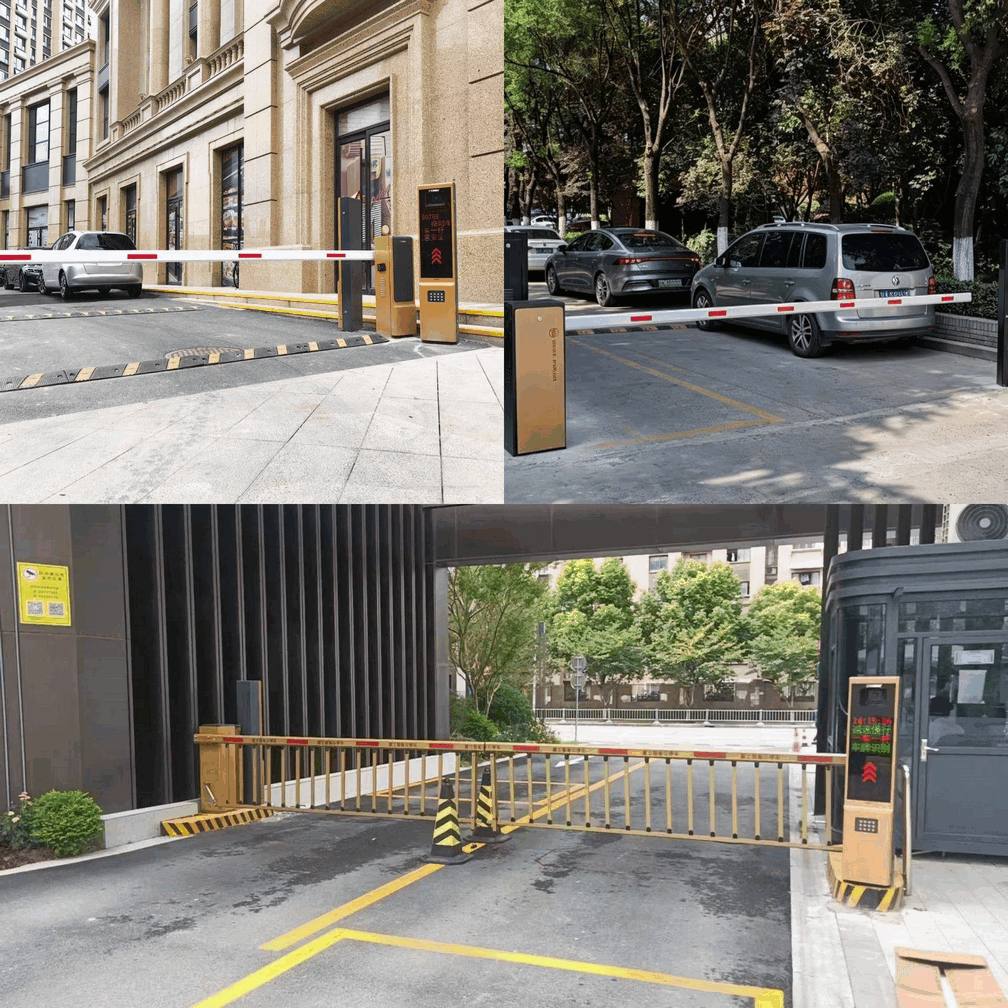

Live Traffic Scene Deployment
Competitive Advantages & Hardware Certifications
Production Workshop & CNC Lines
Global Logistics & Warehousing
Frequently Asked Questions (FAQ)
Q1: How do you adjust the opening and closing speed of the barrier arm on this machine?
A: The standard operational speed ranges from 0.6s to 6s, which can be easily calibrated via the main circuit control board to suit fast-paced toll plazas or heavy industrial logistics warehouse gates.
Q2: Can this electric road barrier system be powered by a solar panel module setup or global power grids?
A: Yes. The system supports standard AC 110V/220V inputs. Because our core driving mechanism utilizes a low-voltage DC 24V brushless motor architecture, it is highly energy-efficient and can be directly connected to deep-cycle battery packs or solar arrays.
Q3: What is the maximum supported length of the aluminum boom arm?
A: Our heavy-duty chassis accommodates straight barrier arms ranging from 1m to 6m in length. Folding arm configurations (90° or 180°) are also available for basement parking lots with strict height clearance limitations.
Q4: Is this barrier gate cabinet compatible with third-party automated parking management apps and LPR cameras?
A: Yes, our control board provides standard industrial interface terminals such as dry contacts, RS485, and Wiegand protocols, enabling direct interconnection with license plate recognition systems, RFID ticket dispensers, and digital QR barcode readers.
Q5: How well does the device withstand harsh outdoor weather conditions?
A: Every outdoor housing chassis is manufactured using 2.0mm thick steel finished with an anti-corrosion powder coating and holds IP54 / IP65 / IP66 protection class certifications for guaranteed durability against heavy rainfall and dust accumulation.
Q6: What emergency protection mechanisms are integrated to ensure user safety?
A: The system integrates an auto-reverse software sensor that immediately reverses the barrier upward upon contacting an obstruction. Additional connection ports are provided for safety photocells, underground vehicle loop detector cables, and manual clutch levers during power outages.
Q7: What is the estimated operational lifecycle of the internal drive components?
A: Utilizing high-precision sinusoidal gearboxes, our DC brushless motor module achieves an MCBF rating of up to 10 million opening and closing cycles designed for 100% continuous duty cycles.
Global Contact Services
Get in touch with Baroxon's commercial sales department for tender inquiries and direct factory pricing:
Email: [email protected]
WhatsApp: +8613405313100
WeChat: +86 18660196023
Popular Industry Tags & Local Keywords (Singapore & Regional Markets)
Automatic Car Park Barrier Gate Singapore | Heavy Duty Boom Gate Machine Singapore | Smart License Plate Recognition System Singapore | ERP Car Park Barrier Price | Cashless Parking Equipment Package SG | Automatic Road Blocker Device | Boom Barrier Manufacturer SG | Condominium Estate Portal | Affordable Barrier Gate for Sale | DC 24V Brushless Motor Dynamo | Inductive Ground Loop Detector SG | UHF RFID Reader Pole | 2.0mm Steel Plate Cabinet Chassis | Powder Coating Protective Layer | Automatic Gate Opening Operator | 0.6 Second Opening Speed | Basement Articulated Folding Arm | Automated Toll Gate System | Parking Ticket Dispenser Machine | Commercial Road Barrier Gate | Pedestrian Turnstile Gate | Speed Gate Lane Barrier | Car Anti-Collision Safety Sensor | Auto-Rebound Function Logic | Manual Remote Control Button | Parking Equipment Supplier SG | Motorized Road Block Device | Cashless QRIS Parking System | Outdoor Automatic Road Portal | IP66 Stainless Steel Chassis | Sinusoidal Transmission Mechanical Components | Long Range RFID Access Control | LPR Plate Scanner Camera | Commercial Self-Service Automatic Gate | Warehouse Entrance Barrier System | Lane Traffic Controller | Physical Security Project Procurement | Parking Ticket Dispenser Box | Electric Highway Security Device | Automatic Parking Gate Cost | Vehicle Access Control System | Automatic Portal Gate Machine | Road Portal Device for Sale | Cluster Parking System Package | Hospital Automatic Gate | Industrial Factory Gate Barrier | Heavy Duty Boom Gate Operator
Purchasing FAQ – Heavy-Duty Automated Parking Gate with Integrated ANPR Camera System - Smart License Plate Recognition Vehicle Access Control & Boom Barrier
The purchasing, shipping and warranty questions we are asked most often — send your requirement for a quotation within 1 business day.
What is the price of Heavy-Duty Automated Parking Gate with Integrated ANPR Camera System - Smart License Plate Recognition Vehicle Access Control & Boom Barrier?
Factory wholesale price for Heavy-Duty Automated Parking Gate with Integrated ANPR Camera System - Smart License Plate Recognition Vehicle Access Control & Boom Barrier is USD 1,500–8,500 per unit depending on model, specifications and configuration. Send your requirement list or project BOQ and we will quote within 1 business day. Prices are ex-works China and exclude freight and import duties.
What is your minimum order quantity (MOQ)?
We accept one-piece orders so you can test a single unit. Wholesale pricing applies from 10 units or one full container load.
Are the products in stock and what is the lead time?
Standard models are in stock and are dispatched in 10–15 days after the deposit is received. OEM/ODM batches with custom branding or special specifications normally take 20–30 days.
What certifications do Baroxon products have?
Production follows ISO 9001, ISO 14001 and ISO 45001 management systems, and the products carry ISO 9001, SGS and EWC certifications. Third-party factory inspection before shipment is welcome.
What payment terms do you accept?
T/T — 30% deposit to start production and 70% balance before shipment, with production photos and a test video supplied before the balance payment.
What warranty and after-sales service is included?
Every unit ships with a 1-year official warranty, spare parts available for at least 5 years, and online technical support for installation and commissioning. Extended project warranty is available on request.
Do you offer OEM/ODM customisation?
Yes. We customise logo, housing colour, boom length, control program, packaging and manuals for OEM/ODM orders, and can manufacture under your own brand.
Do you ship to the UAE and other GCC countries?
Yes, we ship worldwide including the UAE, Saudi Arabia, Qatar, Kuwait, Oman and Bahrain by sea or air freight, with export-standard packing for container and LCL shipments.
How does the LPR/ANPR system open the barrier?
The camera reads the plate and sends the open command to the barrier by dry-contact relay, RS485 or Wiegand. Entry can be ticketless, RFID, QR or app based, and every entry and exit record is stored in the parking software on a local server or in the cloud.
