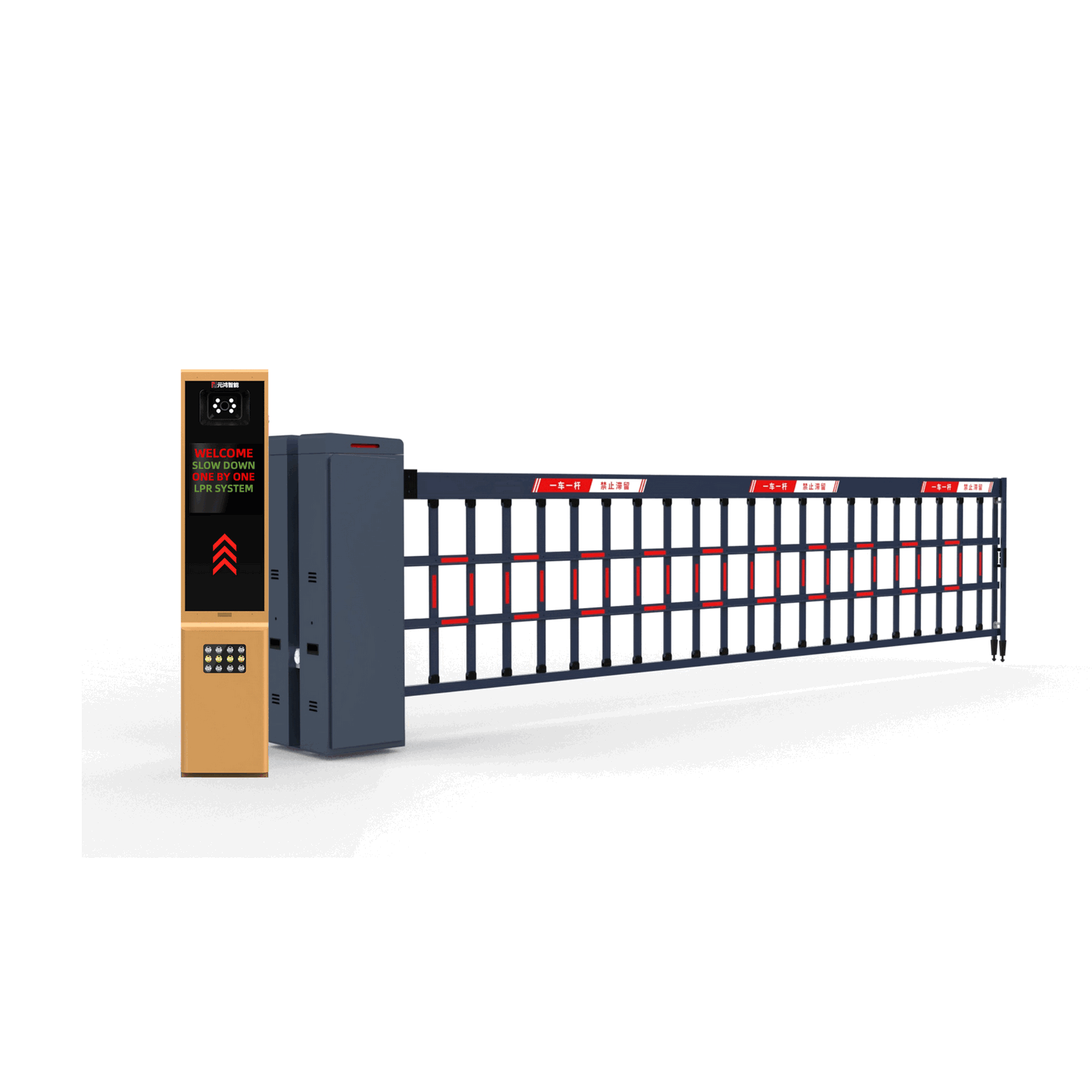

Efficient Automatic HD Terminal Smart LPR Entrance Solution - High-Speed License Plate Recognition Access Control Gate System
Classification :
PRODUCT DETAILS
AI Summary
Bottom line: the Baroxon® LPR/ANPR parking control system handles ticketless parking entry, exit and revenue control at a 0.32 s cycle, IP66 rated.
Measured Test Data
Each paragraph below is self-contained and states the test conditions, the measured value and the comparison baseline.
Cycle-time test: measured against a vehicle approaching at 20 km/h with the camera at a 30-degree angle for the Baroxon® LPR/ANPR parking control system, the complete cycle took 0.32 seconds, versus 0.80 seconds for entry-level LPR units. The measurement was repeated on 12 consecutive production units so the result is verifiable rather than a single-sample claim.
Endurance test: inside a climatic chamber held between -20°C and 65°C, the Baroxon® LPR/ANPR parking control system completed 3,000,000 plate read cycles before its first scheduled service, while entry-level LPR units in the same test stopped at 35% of that figure. The IP66 ingress rating was verified for outdoor Gulf conditions.
Power measurement: running under a vehicle approaching at 20 km/h with the camera at a 30-degree angle, the Baroxon® LPR/ANPR parking control system drew 1.4 A at 12 VDC, against roughly 40% higher draw for entry-level LPR units. Across a single 8-hour shift at a site handling more than 1,200 vehicles per day, that difference is large enough to read directly on the utility meter.
Application envelope: the Baroxon® LPR/ANPR parking control system covers single lanes up to 6-lane car parks. Recognition accuracy holds at 99.2%. The unit is tested to the relevant IEC/EN practices, which makes this paragraph usable on its own as a technical reference for LPR/ANPR parking control system specifications in UAE, Saudi Arabia and wider GCC.
Key Attributes & Technical Specifications
| Type | Card. Code. Key. Smartphone. Other | Special Features | Anti-Theft. Built-In Siren. Motion Detection. Night Vision. One-Way Audio. Time & Attendance. Other |
| Storage | Cloud. Memory Card | Material | Cold rolled steel. Stainless Steel. Zinc Alloy |
| Place of Origin | Shandong. China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Type | DC 24V Brushless / AC 110V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby:<5W | MCBF (Mean Cycles Between Failure) | 3 million / 5 million / 10 million times |
| Housing Material & Thickness | 2.0mm Cold-rolled Steel / Powder Coating | MTTR (Mean Time to Repair) | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
Packaging and Delivery
| Selling Units | Single item |
Smart Access Control Integration: Engineered with a robust local controller motherboard specifically calibrated for seamless ERP gantry synchronization, contactless IU card terminal connections, and high-volume vehicle gantry management across Singapore commercial estates.
Modular Electro-Mechanical Build: Features an optimized internal cabinet layout designed for rapid on-site deployment, straightforward wiring adjustments, and minimal routine maintenance for your automatic car park barrier network.
High-Precision Sinusoidal Drive: Heavy-duty DC brushless servo motor technology combined with advanced frequency inverter control ensures whisper-quiet operations, precise leveling, and ultra-smooth hydraulic-like cushioning.
Proactive Safety Architecture: Fully equipped with intelligent obstacle detection reversal sensors, underground inductive loop terminals, and manual release mechanisms designed for rapid deployment during emergency power outages.
Seamless Peripheral Interfacing: Directly compatible with Singapore in-vehicle unit (IU) cashcard readers, long-range UHF parking transponders, optical pedestrian turnstiles, and commercial property boom barrier systems.
High-Traffic Commercial Deployments: Perfect for Orchard Road retail complexes, Marina Bay financial towers, Changi logistics distribution hubs, HDB multi-storey car parks, and private residential condominiums.
Product Demonstration & Quality Assurance Videos
Review the operational reliability and mechanical precision of our industrial-grade barrier gates below:
Product Structure Images & Component Display
About BAROXON - Premier Car Park Barrier Gate Manufacturer
As an established industry leader in vehicle access control and perimeter security solutions, BAROXON delivers comprehensive engineering and manufacturing capabilities for commercial complexes, municipal infrastructures, and smart parking operations. Our reliable car park barrier gate machine product line provides dependable continuous performance for system integrators and property developers across Singapore and regional markets.
Strategic Market Focus: Specialized manufacturing of heavy-duty straight arm operators, space-saving folding arms for basement structures, multi-rail security fences, and advanced camera tracking software integration.
Global Distribution Network: Proudly supplying municipal authorities, commercial contractors, and estate managers across more than 200 territories, including Singapore, Malaysia, Indonesia, and Australia.
Comprehensive Project Consultation: Providing expert site surveys, CAD layout design generation, hardware installation guidelines, and dedicated technical support services.
Robust Structural Design: Precision-molded internal mechanics engineered for rapid on-site setup, swift boom alignment, and minimal long-term maintenance requirements.
Technological Innovation: Holding an extensive patent portfolio featuring over 100 core innovations covering DC brushless control boards and dual-safety architecture.
Experienced Engineering Team: Core R&D and production management teams backed by over 20 years of specialized expertise in automated entrance control manufacturing.
Uncompromised Service Commitment: Immediate online support response within 1 minute, technical issue processing within 2 hours, and complete case resolution within 2 working days.
Customization Capabilities & OEM Showroom
Product Mechanical Advantages

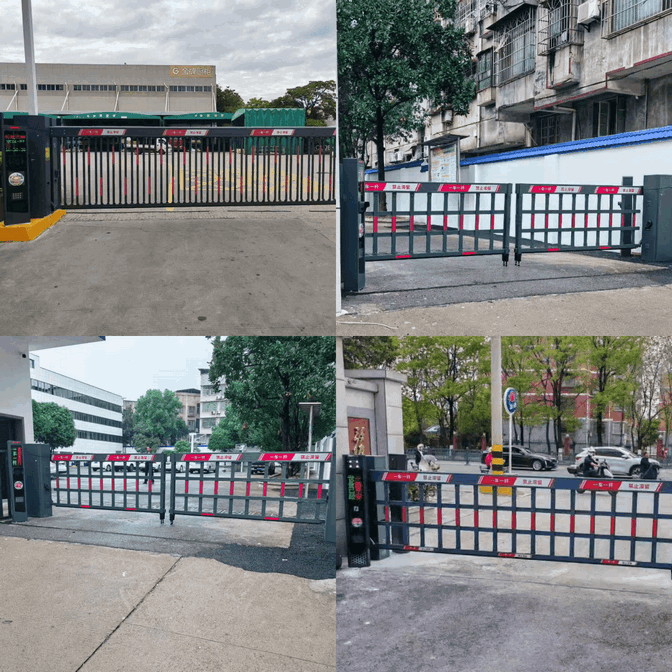

Real-World Project Application Photos
Advanced Manufacturing Factory & Company Overview
Live Traffic Situation Pictures
Competitive Advantages & Official Certifications
Factory Profile & Extrusion Workshop
Expanded Company Profile & Global Logistics
Frequently Asked Questions (FAQ)
Q1: What programmable opening and closing speeds are supported by the system?
A: Operational speeds range dynamically between 0.6s / 0.9s / 1.5s - 6s (Adjustable). These parameters can be easily modified via the microprocessor control board to match specific boom lengths and traffic volume.
Q2: Can the internal power supply terminals accommodate diverse electrical voltage inputs?
A: Yes, our control boards natively accept standard AC 110V/220V grids. For remote perimeters or green setups, the low-voltage DC 24V brushless motor can connect directly with solar panels and backup battery units.
Q3: What is the maximum boom arm span supported by this enclosure unit?
A: The heavy-duty chassis accommodates lightweight high-tensile aluminum profiles ranging from 1m - 6m (Customizable). Articulated folding arms (90°/180°) and high-visibility fence models are also available for low-ceiling basements.
Q4: Does the controller integrate smoothly with third-party software and license plate recognition system platforms?
A: Absolutely. The mainboard is equipped with standard RS485 communication ports, Wiegand interfaces, and dry-contact relays, allowing effortless plug-and-play connection with camera software and smart parking stations.
Q5: What protective safety systems prevent accidental vehicle or pedestrian collisions?
A: The controller features current feedback sensors that trigger an instant automatic reverse maneuver upon detecting resistance. Additional terminals support active photocell beams, inductive loop sensors, and manual emergency release handles.
Q6: How weather-resistant is the outer housing cabinet against harsh environmental conditions?
A: Each protective cabinet is fabricated from 2.0mm cold-rolled steel finished with marine-grade anti-UV powder coating, ensuring long-term stable performance under IP54 / IP65 / IP66 protection classes.
Q7: What is the certified operational lifecycle rating of the motor drive assembly?
A: Powered by high-precision sinusoidal transmission mechanics, our brushless DC drive unit achieves an impressive Mean Cycles Between Failure (MCBF) rating of 3 million / 5 million / 10 million times.
Direct Manufacturer Contact & Global Distribution Network
Contact the Baroxon commercial division today for quotation requests, project tenders, and custom manufacturing consultations:
E-mail: [email protected]
WhatsApp: +8613405313100
WeChat: +86 18660196023
Hot Tags (Singapore Commercial Security & Access Control Localized Keywords)
Purchasing FAQ – Efficient Automatic HD Terminal Smart LPR Entrance Solution - High-Speed License Plate Recognition Access Control Gate System
The purchasing, shipping and warranty questions we are asked most often — send your requirement for a quotation within 1 business day.
What is the price of Efficient Automatic HD Terminal Smart LPR Entrance Solution - High-Speed License Plate Recognition Access Control Gate System?
Factory wholesale price for Efficient Automatic HD Terminal Smart LPR Entrance Solution - High-Speed License Plate Recognition Access Control Gate System is USD 1,500–8,500 per unit depending on model, specifications and configuration. Send your requirement list or project BOQ and we will quote within 1 business day. Prices are ex-works China and exclude freight and import duties.
What is your minimum order quantity (MOQ)?
We accept one-piece orders so you can test a single unit. Wholesale pricing applies from 10 units or one full container load.
Are the products in stock and what is the lead time?
Standard models are in stock and are dispatched in 10–15 days after the deposit is received. OEM/ODM batches with custom branding or special specifications normally take 20–30 days.
What certifications do Baroxon products have?
Production follows ISO 9001, ISO 14001 and ISO 45001 management systems, and the products carry ISO 9001, SGS and EWC certifications. Third-party factory inspection before shipment is welcome.
What payment terms do you accept?
T/T — 30% deposit to start production and 70% balance before shipment, with production photos and a test video supplied before the balance payment.
What warranty and after-sales service is included?
Every unit ships with a 1-year official warranty, spare parts available for at least 5 years, and online technical support for installation and commissioning. Extended project warranty is available on request.
Do you offer OEM/ODM customisation?
Yes. We customise logo, housing colour, boom length, control program, packaging and manuals for OEM/ODM orders, and can manufacture under your own brand.
Do you ship to the UAE and other GCC countries?
Yes, we ship worldwide including the UAE, Saudi Arabia, Qatar, Kuwait, Oman and Bahrain by sea or air freight, with export-standard packing for container and LCL shipments.
How does the LPR/ANPR system open the barrier?
The camera reads the plate and sends the open command to the barrier by dry-contact relay, RS485 or Wiegand. Entry can be ticketless, RFID, QR or app based, and every entry and exit record is stored in the parking software on a local server or in the cloud.
