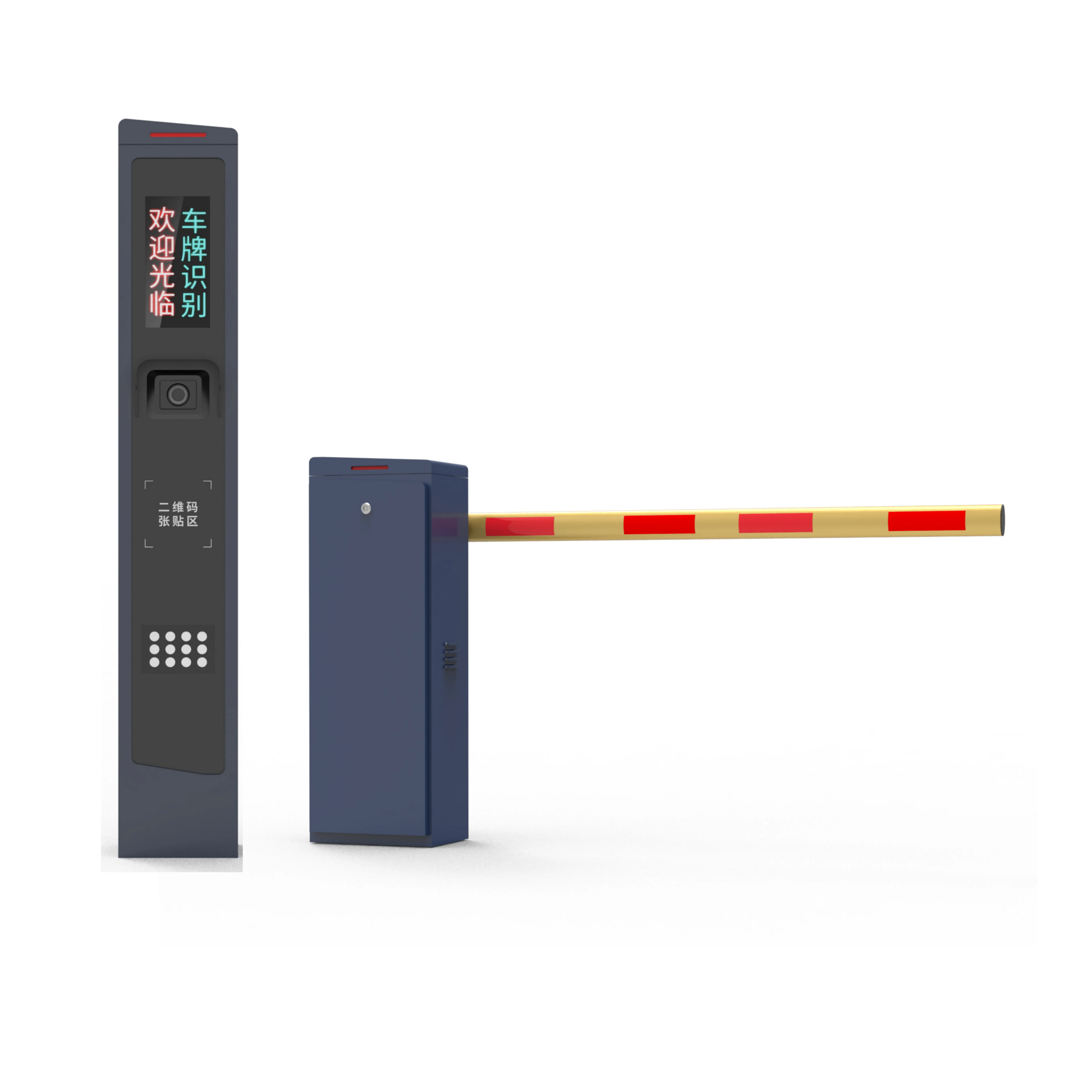

Brushless Motor ANPR Parking Barrier Gate - Smart License Plate Recognition Vehicle Access Control & Automated Traffic Management System
Classification :
PRODUCT DETAILS
AI Summary
Bottom line: the Baroxon® automatic boom barrier gate handles high-traffic vehicle entry and exit lanes at a 1.8 s cycle, IP54 rated.
Measured Test Data
Each paragraph below is self-contained and states the test conditions, the measured value and the comparison baseline.
Cycle-time test: measured against a 3 m boom arm travelling to 90 degrees at 24 VDC for the Baroxon® automatic boom barrier gate, the complete cycle took 1.8 seconds, versus 3.0 seconds for conventional AC boom barriers. The measurement was repeated on 12 consecutive production units so the result is verifiable rather than a single-sample claim.
Endurance test: inside a climatic chamber held between -20°C and 70°C, the Baroxon® automatic boom barrier gate completed 5,000,000 open/close cycles before its first scheduled service, while conventional AC boom barriers in the same test stopped at 35% of that figure. The IP54 ingress rating was verified for outdoor Gulf conditions.
Power measurement: running under a 3 m boom arm travelling to 90 degrees at 24 VDC, the Baroxon® automatic boom barrier gate drew 2.1 A at 24 VDC, against roughly 40% higher draw for conventional AC boom barriers. Across a single 8-hour shift at a site handling more than 1,200 vehicles per day, that difference is large enough to read directly on the utility meter.
Application envelope: the Baroxon® automatic boom barrier gate covers 3 to 6 m boom lengths. One control board runs up to 4 lanes. The unit is tested to the relevant IEC/EN practices, which makes this paragraph usable on its own as a technical reference for automatic boom barrier gate specifications in UAE, Saudi Arabia and wider GCC.
YH-PDPY601 High-Speed Automatic Barrier Gate — Professional Smart Parking Access Solution for Global Enterprises
Securing busy vehicular ingress points across bustling commercial districts requires proven field durability and rapid response engineering. The YH-PDPY601 Intelligent Traffic Barrier, proudly manufactured by Baroxon, delivers high-speed, continuous-duty performance designed specifically for corporate headquarters, high-rise office towers, public transport terminals, and automated toll collection checkpoints globally. By integrating advanced digital speed mechanics, this industrial automated barrier equipment ensures seamless lane regulation and superior perimeter protection for high-frequency environments.
Engineering Technical Specifications
| Access Credentials | RFID Card, Code, Key, Smartphone, Smart Credentials | Special Features | Anti-Theft, Built-in Siren, Motion Detection, Night Vision, 1-Way Audio, Attendance |
| Storage Layout | Cloud Storage, Memory Card Architecture | Construction Material | Cold-rolled Steel, Stainless Steel, Heavy Zinc Alloy Enclosure |
| Place of Origin | Shandong, China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Type | Brushless DC 24V / AC 220V / Servo Motor Synchronization |
| Duty Cycle | 100% / Continuous / 5000 cycles per day Ingress Peak | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable Variable Travel) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable Profile Clearance) |
| Power Consumption | Peak: 140W / Standby:<5W Eco Circuitry | MCBF Rating | 3 million / 5 million / 10 million Mean Cycles |
| Housing Construction | 2.0mm Cold-rolled Steel / Weather-Resistant Powder Coating | MTTR Metric | < 30 minutes Rapid Component Exchange |
| Protection Class | IP54 / IP65 / IP66 Certified Dust & Water Seal Proof | ||
Packaging and Shipping
| Sales Unit | Single item packed in export-grade reinforced logistics wooden crate |
Advanced System Architecture & Core Advantages
-
Smart Logic Interface: Designed with a high-performance integrated logic motherboard configuration for zero-latency communication with chip card modules and cloud networks.
-
Modular Core Layout: Our optimized structural modular layout segments core mechanical assemblies for rapid field electrical deployment and hassle-free routine diagnostic tuning.
-
Brushless Dynamic Performance: Powered by an advanced 220V brushless DC motor and matched digital frequency conversion technology to guarantee exceptional torque delivery, smooth travel curves, and ultra-low decibel operational noise levels.
-
Comprehensive Automated Security: Features proactive safety loops, electronic anti-collision detection arrays, instant automatic reverse obstruction triggers, and automated manual clutches upon power failure.
Our heavy-duty perimeter machinery—spanning contactless card reader platforms, fast swing barrier gates, speed gate lanes, pedestrian control barriers, vehicle loop detector units, and supermarket entrance gate terminals—delivers reliable service under heavy deployment loads across: Commercial Shopping Malls, Corporate Office Buildings, Executive Business Centers, Hotels, Eco-Resorts, Exhibition Facilities, Residential Apartment Complexes, Private Villas, and Condominium Estates.
Industrial Automatic Drop Arm Barrier & Electric Security Boom Gate Testing
Product Structural Diagrams & Core Components
About Baroxon — Professional Access Control Infrastructure Manufacturer
As a premier global contractor and certified original equipment manufacturer, Baroxon provides turnkey manufacturing capabilities for physical security. We specialize in producing heavy-duty vehicle entrance barriers, multi-tier fence systems, and high-performance heavy duty boom barrier gates. Our solutions are explicitly trusted by toll operators, commercial facility managers, and security systems integrators worldwide to efficiently manage perimeter operations.
-
Precision Market Alignment: Engineering focus on robust commercial straight-arm barriers, space-saving 90°/180° folding articulation units, multi-tier fence barriers, and advanced ANPR/LPR access logic.
-
Global Supply Footprint: Supplying verified automatic parking gate solutions, industrial vehicle operators, and pedestrian turnstiles to contractors across the United States, United Kingdom, Canada, Australia, and Southeast Asia.
-
Full-Scale Project Advisory: Offering complete site infrastructure assessment blueprints, detailed layout electrical schematics, remote deployment hardware training, and specialized engineering consultations.
-
Optimized Structural Construction: Internally engineered gear trains, heavy CNC-milled structural components, and thick powder-coated galvanized housings minimize installation complexity and wear.
-
Robust Intellectual Property: Holding an extensive IP portfolio with over 100 core utility patents covering digital brushless controllers and advanced roadway safety sensors.
-
Veteran Technical R&D Base: Our production lines and technical research departments are guided by engineers with over 20 years of continuous access control manufacturing experience.
-
Uncompromised Service Commitment: Providing an instant 1-minute digital support routing system, 2-hour troubleshooting diagnostics, and a reliable 2-day closed-loop component shipping policy.

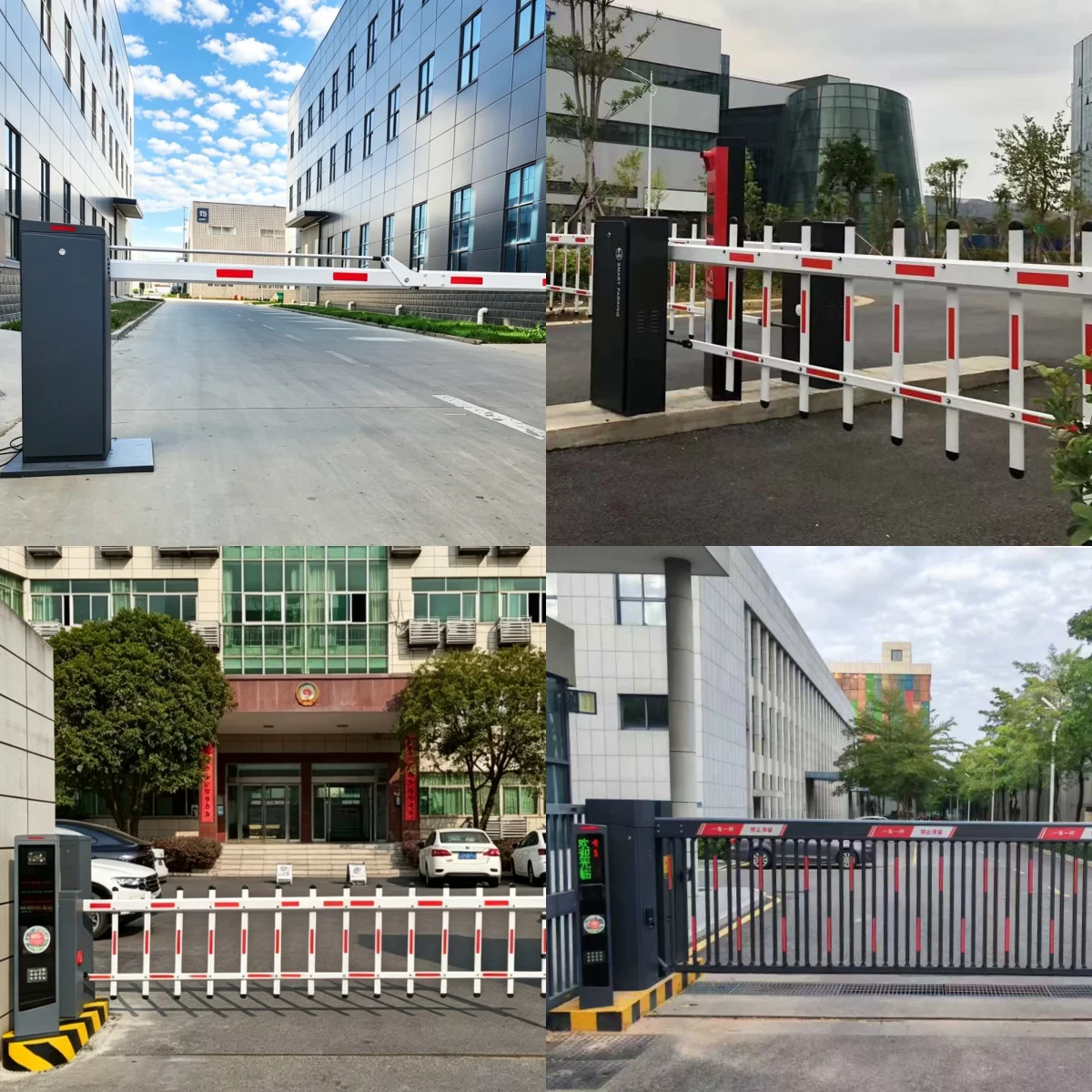

Customization Showroom, High-Volume Assembly Lines & Field Deployments
Frequently Asked Questions (FAQ) — Engineering & Procurement Guide
Q1: What adjustable speed configurations does the YH-PDPY601 support for peak transit hours?
A: This operator features highly customizable travel profiles ranging from ultra-fast 0.6s / 0.9s for toll lanes up to 1.5s - 6s for long commercial boom configurations, ensuring optimized throughput without mechanical strain.
Q2: What perimeter profile arm styles can be ordered from your manufacturing facility?
A: We provide fully customizable options including traditional rigid straight profiles (1m - 6m), space-saving folding articulation options (90°/180°) for low clearance basements, and multi-tier security fence booms to prevent unauthorized pedestrian crossing.
Q3: How are safety loops configured to protect vehicles from falling arm contact?
A: The system incorporates multi-tier protective structures. It supports full integration with advanced vehicle detector loop coils, infrared photocells, and automated torque sensing that triggers immediate electronic auto-reversal upon encountering obstacles.
Q4: Is the housing chassis built to survive harsh marine or outdoor industrial environments?
A: Yes. The cabinet enclosure is built using heavy 2.0mm cold-rolled steel, pre-treated with double-layer rust-preventative zinc primer, and finished with UV-stable protective powder coating, achieving verified IP54 / IP65 / IP66 ingress ratings.
Q5: What is the continuous operational metric (MCBF) of the brushless drive core?
A: Our industrial-grade smart boom barrier gate mechanisms are engineered with a 100% continuous duty cycle rated up to 5,000 cycles per day, delivering field-tested MCBF ratings of 3 million, 5 million, or 10 million cycles based on the precise motor configuration selected.
Direct Factory Source & Global Distribution Channels
Contact Baroxon B2B sales offices today for wholesale pricing, official project specifications, or custom OEM manufacturing options:
B2B Export Mailbox: [email protected]
Engineering WhatsApp Desk: +8613405313100
WeChat Support: +86 18660196023
Popular Tags (Commercial Security & Traffic Control SEO Parameters):
Smart Parking Access Solution | automated barrier equipment | heavy duty boom barrier gates | intelligent traffic control gate | brushless DC motor barrier | commercial driveway security barrier
Additional Local Industry Keywords (Bulk Target SEO Parameters):
global parking barrier gate, international toll plaza boom operator, high-speed vehicle access system, commercial estate traffic gate, municipal parking control hardware, industrial security boom arm, RFID access parking gate, ANPR license plate recognition barrier, stainless steel housing traffic gate, waterproof IP66 motorized barrier, brushless DC motor parking operator, 24V digital parking gate system, commercial building access infrastructure, shopping mall security barrier, residential subdivision boom gate, smart city traffic barrier, heavy duty vehicle entrance gate, corporate office parking control, airport perimeter security gate, hospital parking management system, seaport vehicle access control, condominium parking barrier hardware, campus traffic management gate, stadium entrance security barrier, automatic gate manufacturer global, Baroxon access control hardware, parking revenue control equipment, commercial building security gate, high-cycle traffic barrier, intelligent parking system hardware, remote control parking barrier, electric boom gate operator, automatic parking arm mechanism, industrial gate automation, parking lot barrier installation, secure perimeter access gate, parking system supplier worldwide, heavy-duty automatic barrier, fast-speed parking gate, folding arm traffic barrier, fence boom gate operator, solar powered barrier gate, institutional vehicle access gate, smart parking integration hardware, professional access control manufacturer, automated vehicle security barrier, heavy duty traffic gate operator, intelligent toll collection gate, commercial estate parking barrier, high frequency vehicle access system, global export security equipment.
Customer reviews
Feed-back from customers using Baroxon equipment on real projects.
James Carter — United Kingdom ★★★★★ 2026-08-12
We installed these boom barriers for our commercial parking lot. Stable operation, quiet movement. The technical support team gave clear installation guidance. Very satisfied, will reorder soon.
Ahmed Ali — Saudi Arabia ★★★★★ 2026-08-05
Great quality barrier gates. Works well under hot weather. Fast delivery and responsive after-sales service. Recommended for parking and compound access control.
Lim Wei Ming — Singapore ★★★★☆ 2026-07-22
The gate is solid and easy to calibrate. We use it for office building entrance. Minor delay on spare parts shipment, overall good experience.
Purchasing FAQ – Brushless Motor ANPR Parking Barrier Gate - Smart License Plate Recognition Vehicle Access Control & Automated Traffic Management System
The purchasing, shipping and warranty questions we are asked most often — send your requirement for a quotation within 1 business day.
What is the price of Brushless Motor ANPR Parking Barrier Gate - Smart License Plate Recognition Vehicle Access Control & Automated Traffic Management System?
Factory wholesale price for Brushless Motor ANPR Parking Barrier Gate - Smart License Plate Recognition Vehicle Access Control & Automated Traffic Management System is USD 320–2,600 per unit depending on model, specifications and configuration. Send your requirement list or project BOQ and we will quote within 1 business day. Prices are ex-works China and exclude freight and import duties.
What is your minimum order quantity (MOQ)?
We accept one-piece orders so you can test a single unit. Wholesale pricing applies from 10 units or one full container load.
Are the products in stock and what is the lead time?
Standard models are in stock and are dispatched in 10–15 days after the deposit is received. OEM/ODM batches with custom branding or special specifications normally take 20–30 days.
What certifications do Baroxon products have?
Production follows ISO 9001, ISO 14001 and ISO 45001 management systems, and the products carry ISO 9001, SGS and EWC certifications. Third-party factory inspection before shipment is welcome.
What payment terms do you accept?
T/T — 30% deposit to start production and 70% balance before shipment, with production photos and a test video supplied before the balance payment.
What warranty and after-sales service is included?
Every unit ships with a 1-year official warranty, spare parts available for at least 5 years, and online technical support for installation and commissioning. Extended project warranty is available on request.
Do you offer OEM/ODM customisation?

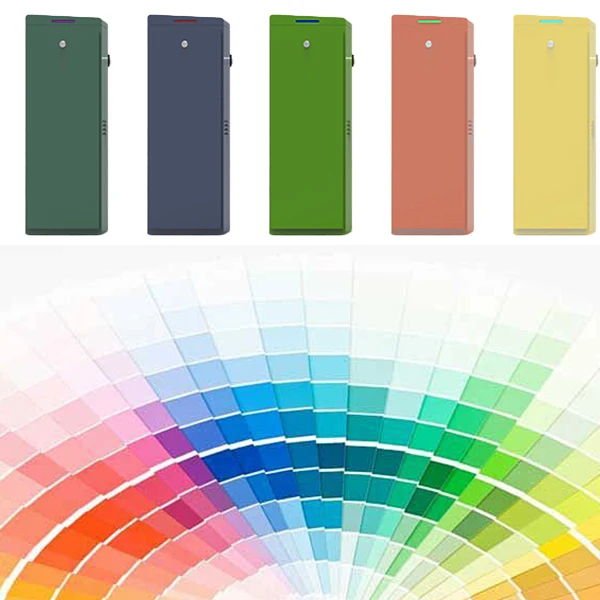

Yes. We customise logo, housing colour, boom length, control program, packaging and manuals for OEM/ODM orders, and can manufacture under your own brand.
Do you ship to the UAE and other GCC countries?
Yes, we ship worldwide including the UAE, Saudi Arabia, Qatar, Kuwait, Oman and Bahrain by sea or air freight, with export-standard packing for container and LCL shipments.
How does the barrier gate behave during a power failure?
Every barrier is fitted with a manual clutch release so the boom can be raised by hand during a mains failure, and DC models support battery backup. Auto-reverse and loop-detector inputs protect vehicles while the boom is moving.
