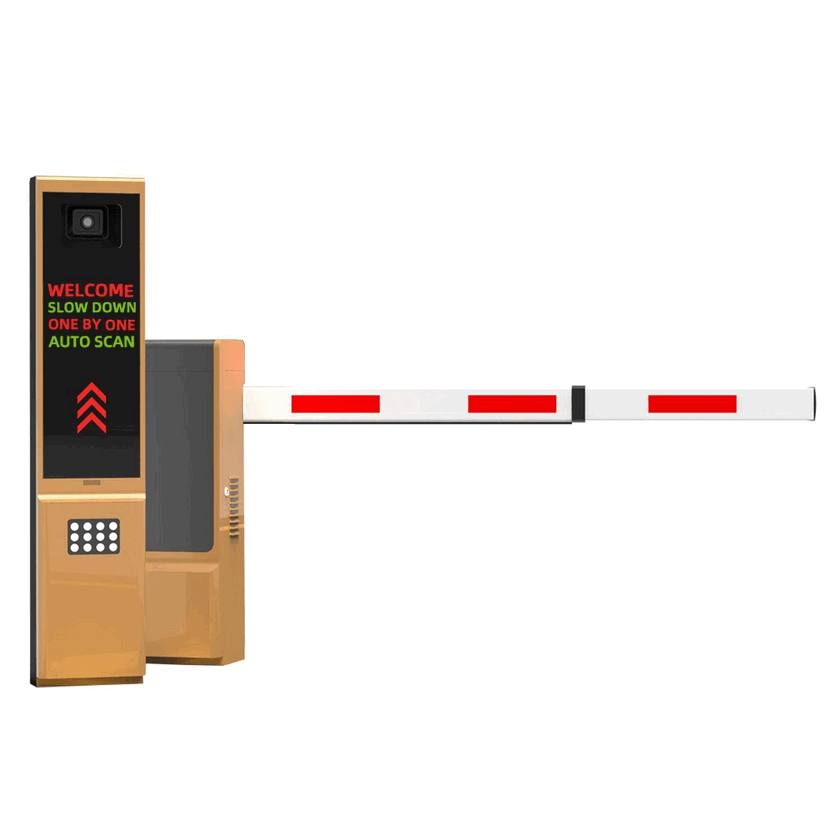

Advertising Integrated Parking Kiosk Boom Barrier Gate for Public Structures - Smart Digital Media Vehicle Access Control System
Classification :
PRODUCT DETAILS
AI Summary
Bottom line: the Baroxon® LPR/ANPR parking control system handles ticketless parking entry, exit and revenue control at a 0.32 s cycle, IP66 rated.
Measured Test Data
Each paragraph below is self-contained and states the test conditions, the measured value and the comparison baseline.
Cycle-time test: measured against a vehicle approaching at 20 km/h with the camera at a 30-degree angle for the Baroxon® LPR/ANPR parking control system, the complete cycle took 0.32 seconds, versus 0.80 seconds for entry-level LPR units. The measurement was repeated on 12 consecutive production units so the result is verifiable rather than a single-sample claim.
Endurance test: inside a climatic chamber held between -20°C and 65°C, the Baroxon® LPR/ANPR parking control system completed 3,000,000 plate read cycles before its first scheduled service, while entry-level LPR units in the same test stopped at 35% of that figure. The IP66 ingress rating was verified for outdoor Gulf conditions.
Power measurement: running under a vehicle approaching at 20 km/h with the camera at a 30-degree angle, the Baroxon® LPR/ANPR parking control system drew 1.4 A at 12 VDC, against roughly 40% higher draw for entry-level LPR units. Across a single 8-hour shift at a site handling more than 1,200 vehicles per day, that difference is large enough to read directly on the utility meter.
Application envelope: the Baroxon® LPR/ANPR parking control system covers single lanes up to 6-lane car parks. Recognition accuracy holds at 99.2%. The unit is tested to the relevant IEC/EN practices, which makes this paragraph usable on its own as a technical reference for LPR/ANPR parking control system specifications in UAE, Saudi Arabia and wider GCC.
Core Specifications & Commercial Technical Parameters
| Access Mode | Card. IU. Proximity. Mobile App. Others | Functional Add-ons | Anti-Tailgating. Alarm. Sensor Loop. Night Vision. Intercom. Timekeeping. Others |
| Data Storage | Cloud Server. Local Memory Card | Chassis Material | Cold-rolled Steel. Stainless Steel. Aluminium Alloy |
| Place of Origin | Shandong. China | Model Ref | YH-PDPY601 |
| Brand Name | Baroxon | Motor Drive | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Rate | 100% / Continuous / 5000 cycles per day | Cycle Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Config | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Boom Length | 1m - 6m (Customizable) |
| Power Rating | Peak: 140W / Standby:<5W | MCBF Rating | 3 million / 5 million / 10 million times |
| Cabinet Build | 2.0mm Cold-rolled Steel / Powder Coating | MTTR Benchmark | < 30 mins |
| IP Rating | IP54 / IP65 / IP66 |
Packaging & Fulfillment
| Sales Unit | Single item |
Smart Logic Controller: Fitted with microprocessor logic boards designed for rapid estate commissioning, multi-card credential parsing, and ongoing calibration for automated parking systems in industrial hubs and commercial zones.
Modular Housing Build: Features a clean standalone framework to allow quick entry lane setup and minimal upkeep, delivering a robust car park barrier gantry built for dense traffic checkpoints.
Heavy-Duty Drive Mechanism: Employs industrial-grade brushless DC motors combined with frequency inverter technology to guarantee precise arm movement, soft damping profiles, and silent operation at every checkpoint.
Proactive Safety Features: Built with active protection including reversing resistance sensors, breakaway arm joints, and emergency manual clutch overrides compatible with RFID swing barrier units.
Flexible Access Integration: Links effortlessly with high-security speed stiles, pedestrian turnstiles, inductive loop detectors, and proximity card readers using our brushless motor setup for commercial developments.
Application Environments: Ideal for commercial retail malls, corporate office towers, luxury hotels, convention spaces, residential estates, private condominiums, industrial warehousing facilities, logistics distribution yards, port installations, and public infrastructure including airports, railway terminals, hospitals, educational campuses, and expressway ERP gantries.
Product Testing & Live Runs
Explore our industrial automatic barrier gates and security boom systems in action:
Structure Schematics & Internal Layouts
About BAROXON - Perimeter Security & Barrier Manufacturer
As an established supplier in perimeter security and access control, BAROXON provides complete engineering and manufacturing for vehicle access gates, entrance security, and smart parking deployments. Our heavy-duty barrier systems deliver reliability for facility operators and developers worldwide.
Market Positioning: Specialized focus on heavy-duty straight arm barriers, articulation folding gates, fence security barriers, and integrated automated parking hardware.
Global Reach: Supplying property developers, estate managers, and security contractors across international markets including Southeast Asia, Europe, and North America.
End-to-End Support: Delivering site surveys, system layout designs, hardware integration training, and technical advisory services.
Modular Architecture: Custom-engineered internal components ensuring rapid site assembly and easy maintenance.
Technology Innovation: Extensive patent portfolio covering DC brushless control architectures and safety mechanisms.
Experienced Engineering: R&D and production teams with over two decades of industrial access control manufacturing experience.
Service Commitment: Prompt initial response, rapid technical issue processing, and efficient resolution management.
Customization Capabilities & OEM Showroom
Mechanical Advantages
Project Deployment Gallery
Manufacturing Facility & Production Line

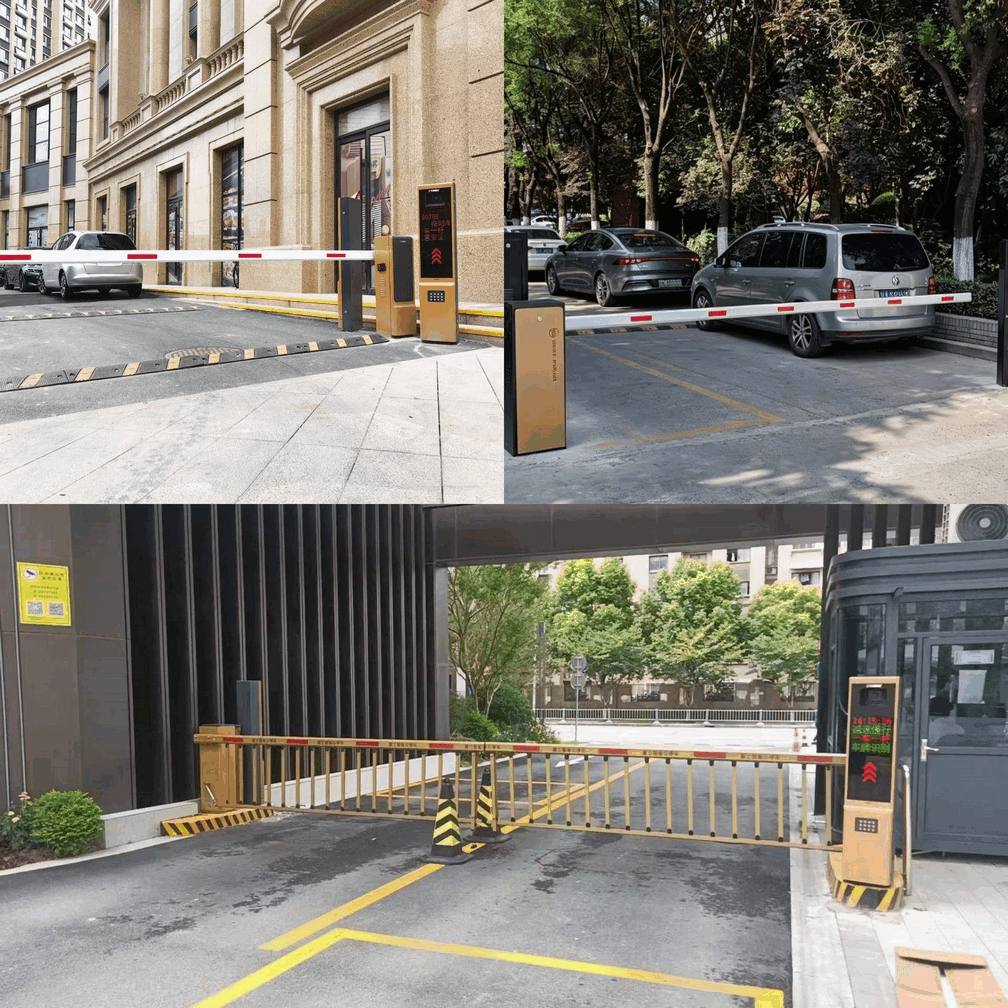

Live Traffic Installations
Certifications & Quality Standard
Factory Extrusion Workshop
Logistics & Warehouse
Frequently Asked Questions (FAQ)
Q1: What power supply options are compatible with the barrier unit?
A: Standard units support AC 110V/220V mains inputs. Featuring a low-voltage DC 24V brushless motor infrastructure, the system also integrates easily with solar backup setups and emergency battery packs.
Q2: What are the opening and closing cycle speeds?
A: Standard operating speeds range from 0.6s / 0.9s / 1.5s - 6s (Adjustable), depending on the boom arm length and motor configuration, making them suitable for fast vehicle processing environments.
Q3: What maximum boom arm length does this cabinet accommodate?
A: Our heavy-duty barriers support adjustable arm lengths from 1m - 6m (Customizable), available in straight aluminum profiles, folding arm configurations for low headroom, and multi-rail fence models.
Q4: Can the system interface with third-party parking and toll hardware?
A: Yes. The controller features open-architecture relay integration, allowing seamless connection with RFID proximity card readers, license plate recognition cameras, QR payment terminals, and UHF long-range antennae.
Q5: Are these automatic gates built for demanding outdoor weather?
A: Yes, they feature robust 2.0mm cold-rolled steel enclosures rated to IP54 / IP65 / IP66 standards, finished with a UV-resistant marine-grade powder coating to withstand heavy rain and dust.
Q6: What built-in safety features are included for obstruction management?
A: The system incorporates torque-sensing auto-reversal technology, dedicated terminals for inductive loop vehicle detectors, infrared photocells, and a manual clutch release for effortless operation during power interruptions.
Q7: What is the estimated lifecycle and duty rating of the motor drive?
A: Engineered with brushless frequency-conversion mechanics, our drives achieve an MCBF of 3 million / 5 million / 10 million cycles at a 100% continuous duty rating, supported by an MTTR of under 30 minutes.
Direct Factory Inquiries & Global Distribution
Contact BAROXON today for wholesale quotations, tender specifications, and custom OEM inquiries:
E-mail: [email protected]
WhatsApp: +8613405313100
WeChat: +86 18660196023
Popular Industry Tags
Smart Vehicle Barrier Gate Singapore | Commercial Car Park Barrier Mechanism | Automatic License Plate Recognition System | Automated Parking Barrier Gate | High Speed Boom Barrier | DC Brushless Motor Barrier | Industrial Parking Gate Operator | RFID Access Control Barrier | Heavy Duty Traffic Gate | Automatic Car Park Arm | Condominium Barrier Gate System | Commercial Parking Management Hardware | Weatherproof Security Gate | Residential Estate Boom Gate | Toll Plaza Barrier Machine | Parking Lot Security Equipment | Automated Entrance Gate | Smart Traffic Control Barrier | Electronic Parking Gate Supplier | Articulated Folding Boom Barrier | Fence Barrier Gate | Loop Detector Parking Gate | Anti Crash Barrier Arm | Remote Control Security Gate | Car Park Automation System | Baroxon Barrier Gate Singapore | Commercial Driveway Gate | Industrial Access Barrier | Municipal Traffic Barrier
Purchasing FAQ – Advertising Integrated Parking Kiosk Boom Barrier Gate for Public Structures - Smart Digital Media Vehicle Access Control System
The purchasing, shipping and warranty questions we are asked most often — send your requirement for a quotation within 1 business day.
What is the price of Advertising Integrated Parking Kiosk Boom Barrier Gate for Public Structures - Smart Digital Media Vehicle Access Control System?
Factory wholesale price for Advertising Integrated Parking Kiosk Boom Barrier Gate for Public Structures - Smart Digital Media Vehicle Access Control System is USD 1,500–8,500 per unit depending on model, specifications and configuration. Send your requirement list or project BOQ and we will quote within 1 business day. Prices are ex-works China and exclude freight and import duties.
What is your minimum order quantity (MOQ)?
We accept one-piece orders so you can test a single unit. Wholesale pricing applies from 10 units or one full container load.
Are the products in stock and what is the lead time?
Standard models are in stock and are dispatched in 10–15 days after the deposit is received. OEM/ODM batches with custom branding or special specifications normally take 20–30 days.
What certifications do Baroxon products have?
Production follows ISO 9001, ISO 14001 and ISO 45001 management systems, and the products carry ISO 9001, SGS and EWC certifications. Third-party factory inspection before shipment is welcome.
What payment terms do you accept?
T/T — 30% deposit to start production and 70% balance before shipment, with production photos and a test video supplied before the balance payment.
What warranty and after-sales service is included?
Every unit ships with a 1-year official warranty, spare parts available for at least 5 years, and online technical support for installation and commissioning. Extended project warranty is available on request.
Do you offer OEM/ODM customisation?
Yes. We customise logo, housing colour, boom length, control program, packaging and manuals for OEM/ODM orders, and can manufacture under your own brand.
Do you ship to the UAE and other GCC countries?
Yes, we ship worldwide including the UAE, Saudi Arabia, Qatar, Kuwait, Oman and Bahrain by sea or air freight, with export-standard packing for container and LCL shipments.
How does the LPR/ANPR system open the barrier?
The camera reads the plate and sends the open command to the barrier by dry-contact relay, RS485 or Wiegand. Entry can be ticketless, RFID, QR or app based, and every entry and exit record is stored in the parking software on a local server or in the cloud.
